Shop PASS & SEYMOUR

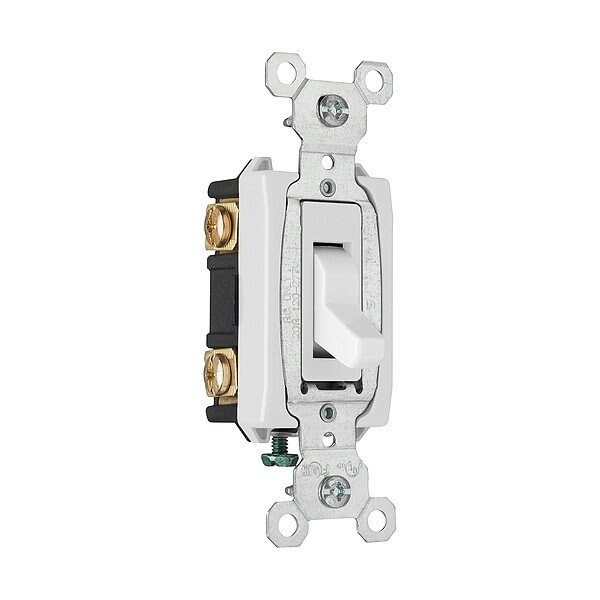

Wall Switch, 2 hp, Toggle, 20 A, White

  • Mfr # CSB20AC3W

  • Zoro # G916332674

product price:  $12.59
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
Features
Single Piece Plated Steel Mounting Strap
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB20AC3W
Zoro #
G916332674
UPC #
785007126297
Country of Origin
Mexico

Dimensions

Switch Height
2.4 in
Overall Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Switch Depth
1.1 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
Features
Single Piece Plated Steel Mounting Strap
Color
White
Wiring Method
Back/Side
Switch Material
Thermoplastic Polycarbonate
Current Rating
20 A
Strap Material
Nickel-Plated Steel
Voltage Rating
120/277V AC
Maximum Operating Temperature
115 Degrees C
Number of Switches
1
Housing Material
Glass-Reinforced Nylon
Minimum Operating Temperature
-40 Degrees C
Grounding
Grounded
Resistance Properties
Corrosion Resistant
Horsepower Rating
2 hp
Market
Commercial
Wire Connection Type
Screw Terminals
Nightlight
No
Switch Function
Maintained
Contact Material
Silver Alloy
Illuminated
No

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Corrosion Resistant
