  11. Tower Light Assembly, 24V DC, 100 mm Dia., 280 mm Height, LED, LR10 Series

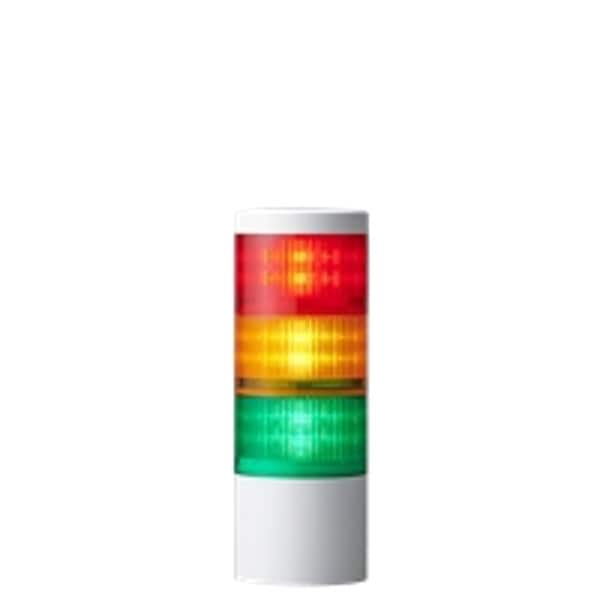

Patlite Tower Light Assembly, 24V DC, 100 mm Dia., 280 mm Height, LED, LR10 Series LR10-302WMNW-RYG - main

Tower Light Assembly, 24V DC, 100 mm Dia., 280 mm Height, LED, LR10 Series

  • Mfr # LR10-302WMNW-RYG

  • Zoro # G810993490

product price: $533.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), FCC Part 15 Subpart B Class A, RoHS Directive (EN 50581), UL 508
Voltage
24V DC
Overall Diameter
100 mm
Housing Material
Polycarbonate
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR10-302WMNW-RYG
Zoro #
G810993490
UPC #
-
Country of Origin
Japan

Dimensions

Overall Diameter
100 mm
Overall Height
280 mm
Diameter
100 mm
Cord Length
500 mm
Lead Length
500 mm

Details

Item
Tower Light Assembly
Standards
CSA C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), FCC Part 15 Subpart B Class A, RoHS Directive (EN 50581), UL 508
Voltage
24V DC
Housing Material
Polycarbonate
Lighting Technology
LED
Current Drawn
10mA
Includes
M12 Connector
Flashes per Minute
60, 120
Tower Light Series
LR10
Lens Material
Polycarbonate
Number of Lights
3
Tower Light Mounting Style
Direct
Tower Light Color
Amber, Green, Red
Light Modes
Flashing, Steady
NEMA Rating
NEMA 13, NEMA 4X
Operating Temp.
-20 Degrees to 50 Degrees C
Operating Current
0.010 A
Operating Temperature - Minimum
-20 Degrees C
Housing Color
Off-White
Number of Light Tiers
3
Connection Type
Pin Connector
Control Protocol
Direct Wire
Light Source
LED
Light Operating Mode
Flashing, Rotating
Includes Mounting Hardware
Mounting Hardware Included
Operating Temperature - Maximum
50 Degrees C
IP Rating
IP69K
Light Tier Color
Amber, Green, Red
For Location
Indoor, Outdoor
Operating Voltage
24V DC

Description

Tower Light Mounting Style Direct, Number of Lights 3, Tower Light Color Amber, Green, Red, Light Modes Flashing, Steady, Sound Modes Not Applicable, Lighting Technology LED, Sounder Included Not Applicable, Diameter 100 mm, Overall Height 280 mm, Voltage 24V DC, NEMA Rating NEMA 13, NEMA 4X, Tower Light Series LR10, 60, 120 Flashes per Minute, Housing Material Polycarbonate, Lens Material Polycarbonate, Sound Level Not Applicable, Cord Length 500 mm, Operating Temp. -20 Degrees to 50 Degrees C
