  6. Wall Mount Signal Tower, 100 to 240V AC, 80 3/16 mm Dia., 188 1/8 mm Height

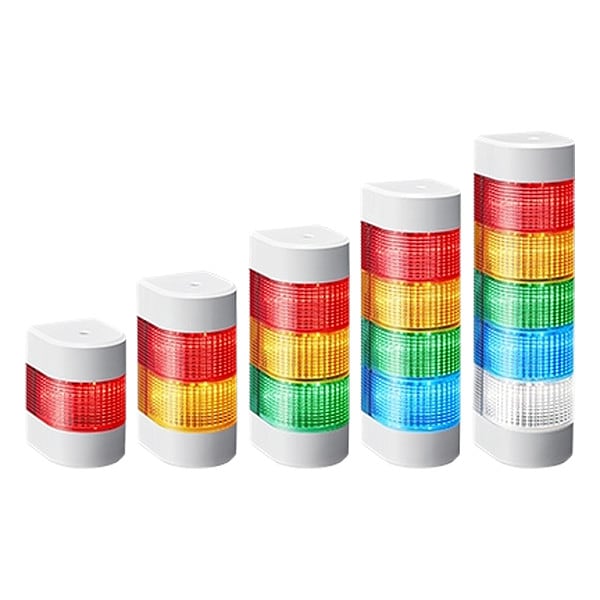

Patlite Wall Mount Signal Tower, 100 to 240V AC, 80 3/16 mm Dia., 188 1/8 mm Height WME-3M2D-RYG - main

Wall Mount Signal Tower, 100 to 240V AC, 80 3/16 mm Dia., 188 1/8 mm Height

  • Mfr # WME-3M2D-RYG

  • Zoro # G012471277

product price:  $735.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part15 SubpartB Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Overall Diameter
80 3/16 mm
Housing Material
Polycarbonate Resin
Includes
Mounting Bracket
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WME-3M2D-RYG
Zoro #
G012471277
UPC #
-
Country of Origin
Japan

Dimensions

Overall Diameter
80 3/16 mm
Overall Height
188 1/8 mm

Details

Item
Wall Mount Signal Tower
Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part15 SubpartB Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Housing Material
Polycarbonate Resin
Includes
Mounting Bracket
Lens Material
Polycarbonate
Control Protocol
Direct Wire
Includes Sounder Tier
No Sounder Tier
Light Operating Mode
Steady
Light Source
LED
Operating Current
Max. 0.081 A, Typ. 0.063 A
Connection Type
Wire Leads
For Location
Indoor
Light Tier Color
Amber, Green, Red
Operating Temperature - Maximum
55 Degrees C
Includes Mounting Hardware
Mounting Hardware Included
Number of Light Tiers
3
Housing Color
Off White
Light Intensity
2,000 mcd, 3,100 mcd, 5,200 mcd
Wattage
3.2 W
Operating Temperature - Minimum
-10 Degrees C
IP Rating
IP54
Operating Voltage
100 to 240V AC

Description

Overall Height 188 1/8 mm, NEMA Rating Not Applicable, Not Applicable Flashes per Minute, Housing Material Polycarbonate Resin, Lens Material Polycarbonate, Standards UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part15 SubpartB Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471), Includes Mounting Bracket, Wall Mount Signal Tower
