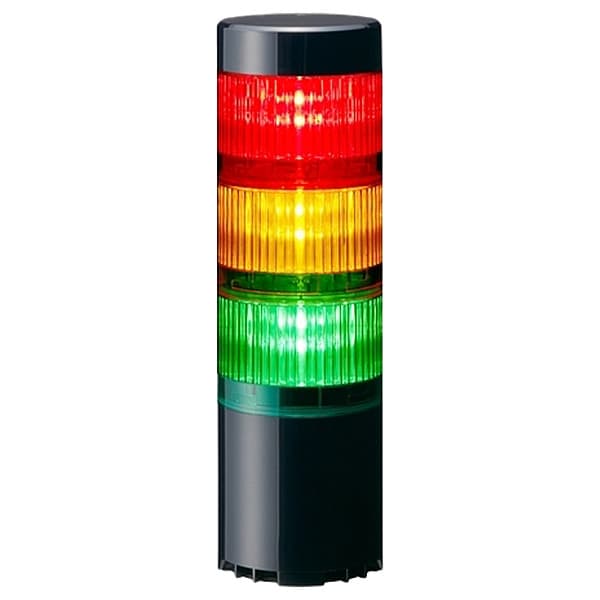

Tower Light Assembly, 5V DC, 60 mm Dia., 211 mm Height

  • Mfr # LR6-3USBK-RYG

  • Zoro # G111208750

product price:
$
412.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 60950-1 ,CAN/CSA C22.2 No. UL60950-1-07, FCC Part 15 Subpart B Class B, ICES-003, EMC Directive (EN 61000-6-3, EN 61000-6-2, EN55032 ClassB, EN55035)Flanged Nut(M4) x3, Cable Tie x1KC (KN 61000-6-2 /6-4), RoHS Directive (EN IEC 63000)
Voltage
5V DC
Overall Diameter
60 mm
Overall Height
211 mm
Flashes per Minute
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LR6-3USBK-RYG
Zoro #
G111208750
UPC #
-
Country of Origin
Japan
Item
Tower Light Assembly
Standards
UL 60950-1 ,CAN/CSA C22.2 No. UL60950-1-07, FCC Part 15 Subpart B Class B, ICES-003, EMC Directive (EN 61000-6-3, EN 61000-6-2, EN55032 ClassB, EN55035)Flanged Nut(M4) x3, Cable Tie x1KC (KN 61000-6-2 /6-4), RoHS Directive (EN IEC 63000)
Voltage
5V DC
Flashes per Minute
60
Lens Material
Polycarbonate
For Location
Indoor
Operating Temperature - Minimum
-20 Degrees C
Housing Color
Black
Wattage
2.5 W
Water Resistance
Water Resistant
Sound Volume - Maximum
80 dB
Sound Operating Mode
Intermittent, Steady
Control Protocol
USB
Light Operating Mode
Flashing, Steady
NEMA Rating
NEMA 13, NEMA 4X
Operating Current
USB Bus Power
Sound Style
Buzzer
Connection Type
Wire Leads
Operating Temperature - Maximum
50 Degrees C
Light Tier Color
Amber, Green, Red
Light Source
LED
Number of Light Tiers
3
Includes Sounder Tier
Sounder Tier Included
IP Rating
IP65
Operating Voltage
5V DC

Description

Overall Height 211 mm, NEMA Rating NEMA 13, NEMA 4X, 60 Flashes per Minute, Lens Material Polycarbonate, Standards UL 60950-1 ,CAN/CSA C22.2 No. UL60950-1-07, FCC Part 15 Subpart B Class B, ICES-003, EMC Directive (EN 61000-6-3, EN 61000-6-2, EN55032 ClassB, EN55035)Flanged Nut(M4) x3, Cable Tie x1KC (KN 61000-6-2 /6-4), RoHS Directive (EN IEC 63000), Tower Light Assembly
