Patterson Air Circulator, Trailer Cooler, 240V FHVTCC

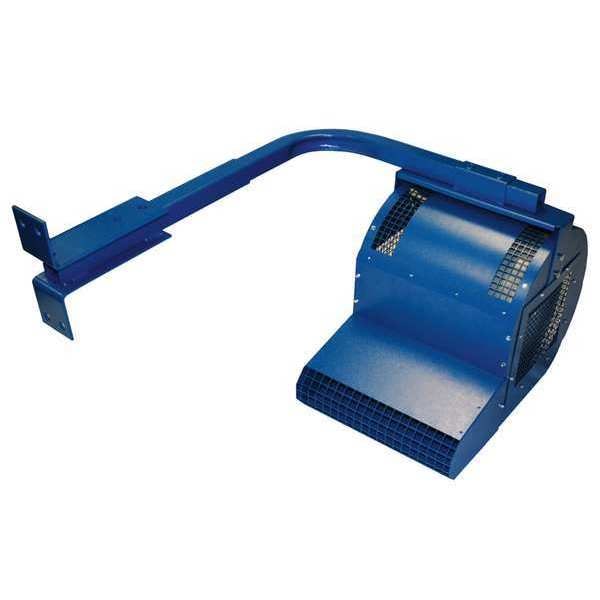

Air Circulator, Trailer Cooler, 240V (Discontinued)

  • Mfr # FHVTCC
  • Zoro # G5962747
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FHVTCC
Zoro #
G5962747
UPC #
-
Country of Origin
United States

Dimensions

Housing Height (In.)
16 in
Discharge Height (In.)
4 in
Discharge Width (In.)
16 in
Housing Width (In.)
16 in
Wheel Width (In.)
11 in
Housing Depth (In.)
25 in
Wheel Dia.
10 1/2 in
Manufacturer Warranty Length
2 yr
Outlet Width
16 in
Wheel Diameter
10 1/2 in
Outlet Height
4 in
Housing Height
16 in
Wheel Width
11 in
Housing Depth
25 in
Housing Width
16 in

Details

Item
Air Circulator
Type
Trailer Cooler
Wheel Material
Steel
Speed Controllable
No
Max. Inlet Temp. (Deg. F)
112 Degrees F
Speed
Single
Includes
(2) Adjustable Swivel Wall Mount
CFM @ 0.000-In. SP
2800
Motor RPM
1075
Phase
3
Housing Finish
Blue Powder Coated
Max. Ambient Temp. (F)
112 Degrees F
Full Load Amps
2.4/1.2
Motor HP
3/4 hp
Voltage
230/460
Motor Type
Open Dripproof
Housing Material
Steel
Bearing Type
Ball
CFM Range
2800
Mounting
Swivel Wall
Drive Type
Direct Drive
Blower RPM
1,075 RPM
Hz
60
Application
Truck Cooler
Airflow @ 0.000 in SP
2,800 cfm
Current
2.5 to 2.4/1.2 A
Maximum Inlet Air Temperature
112 Degrees F
Housing Color
Blue
Includes Drive Package
Yes
Number of Speeds
1
Features
Produce High-Velocity Air Circulation to Cool the Longest Trailers, Ship with 2-Pc. 2-Way Adjustable Swivel Wall-Mount Bracket, Slim-Profile Coolers Mount Near Trailer Ceiling Height to Stay out of the Way of Forklifts and Allow More Room at the End of the Trailer
Outlet Shape
Rectangular
Housing Material Finish
Powder Coated
Frequency
60 Hz
Maximum Ambient Temperature
112 Degrees F
Flange Type
Non-Flanged
Motor Horsepower
3/4 hp
Mount Type
Wall
Motor Speed
1,075 RPM
Motor Frame Designation
48
Motor Enclosure
Open Dripproof
Maximum Fan Speed
1,075 RPM
Nameplate Voltage
208-230/460V AC
Includes Motor
Yes
Housing Material Gauge
16 ga
OEM Replacement
No

Description

Air Circulator, Drive Type Direct Drive, Includes Drive Package Yes, Wheel Diameter 10 1/2 in, Airflow @ 0.000 in SP 2,800 cfm
