  9. High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 22 in Blade Dia, 277V, 5,570 cfm

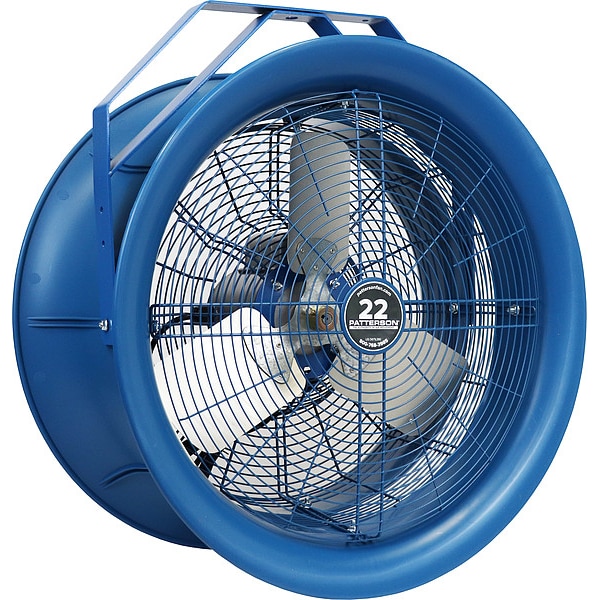

Patterson High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 22 in Blade Dia, 277V, 5,570 cfm H22C - main

High Velocity Industrial Fan, Ceiling, Column, Floor, Wall Mount, 22 in Blade Dia, 277V, 5,570 cfm

  • Mfr # H22C

  • Zoro # G210070258

product price: $1,046.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
277V
Phase
1
Motor HP
1/2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H22C
Zoro #
G210070258
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
22 in
Width
29 in
Height
32-1/8 in
Max. Depth
16 in
Depth
16 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
277V
Phase
1
Motor HP
1/2 hp
Air Flow
5,570 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Hardwired
Sound Level
66.5 dBA @ 20 ft; 77.6 dBA @ 3 ft
Item
High Velocity Industrial Fan
Air Velocity @ 10 Ft.
1,200 fpm
Features
Long Air Throw
Air Velocity @ 40 Ft.
450 fpm
Bearing Type
Ball
Thermal Protection
Automatic Reset
Color
Blue/Silver
Max. Ambient Temp.
104 Degrees F
Air Velocity @ 80 Ft.
200 fpm
Air Velocity @ 20 Ft.
625 fpm
Air Velocity @ 60 Ft.
375 fpm
Includes
Fan Head, OSHA Guards, Yoke Mount
Housing Material
Polypropylene
Motor Enclosure
Totally Enclosed Air Over
Amps
1.85 A @ 277 V
Motor RPM
1,725 RPM
For Use With
Chain Ceiling Mount, Floor Mount, Column and Wall Mount
Motor Type
Continuous Duty
Number of Blades
3
Wire Guard Finish
Powder Coated
Standards
OSHA Compliant Guards
RPM
1725
Guard Material
Spiral Wound Steel
Motor Insulation
Class F
Fan Mounting Location
Ceiling, Column, Floor, Wall
Fan Housing Material
Polypropylene
Fan Blade Finish
Mill
Head Tilt Adjustment
19 Degrees
Battery Operated - Fans
No
Housing Finish - Fans
Matte
Fan Blade Color
Silver
Motor hp
1/2 hp

Description

High-Velocity Industrial Fan,5570 cfm
