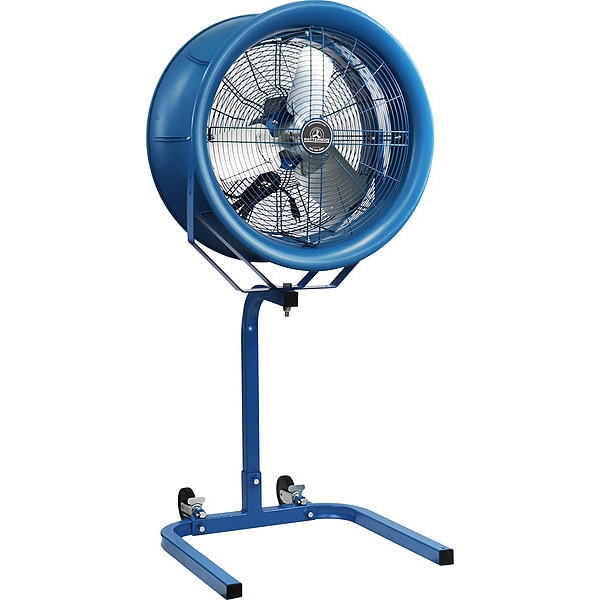

High Velocity Industrial Fan, Pedestal Mount, 18 in Blade Dia, 277V, 3,800 cfm, Non-Oscillating

  • Mfr # H18C-PS

  • Zoro # G211767560

product price:
$
1,244.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
277V AC
Phase
Single
Motor HP
1/2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H18C-PS
Zoro #
G211767560
UPC #
-
Country of Origin
Multiple

Dimensions

Blade Diameter
18 in
Max. Depth
16 in
Width
24 in
Height
25 1/2 in
Base Dia.
35 in
Length
24 in
Shaft Dia.
5/8 in
Max. Mounting Height
10 to 40 ft
Wheel Dia.
5 in
Depth
16 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
277V AC
Phase
Single
Motor HP
1/2 hp
Air Flow
3,800 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Hardwired
Sound Level
76.3 dBA
Item
Portable Fan
Hz
60 Hz
Number of Conductors
3
Bearing Type
Ball
Fan Accessory Finish
Matte
Motor RPM
1,725 RPM
Fan Accessory Material
Polypropylene
Thermal Protection
Automatic Reset
Wire Guard Finish
Powder Coated
Environmental Applications
Agricultural, Commercial, Industrial
Air Velocity @ 60 Ft.
250 fpm
Number of Blades
3
Guard Material
Steel
Assembled
No
Housing Material
Polypropylene
Amps
1.85 A
Motor Enclosure
Totally Enclosed Air-Over
Max. Ambient Temp.
104 Degrees F
Color
Blue
Air Velocity @ 20 Ft.
475 fpm
Air Velocity @ 10 Ft.
925 fpm
Motor Insulation
F
Motor Type
Three-Phase
Mobile/Stationary
Mobile
Fan Mounting Location
Pedestal
Material
Polypropylene
RPM
1,725 RPM
Includes
Mounting Yoke
Air Velocity @ 40 Ft.
350 fpm
Air Velocity @ 80 Ft.
175 fpm
Standards
OSHA Compliant Guards
Assembly Required
Yes
Fan Blade Color
Gray
Housing Finish - Fans
Matte
Wheel Material
Plastic
Wheeled Base
Mobile
Head Tilt Adjustment
33 Degrees
Battery Operated - Fans
No
Fan Housing Material
Polypropylene
Motor Design
3-Phase
Motor hp
1/2 hp
Sound Level - Minimum
65.1 dBA
Housing Decorative Finish
Matte
Base Type
Pedestal
Airflow
3,800 cfm

Description

HV Fan, 18 in Blade Dia, Pedestal
