Payson Casters

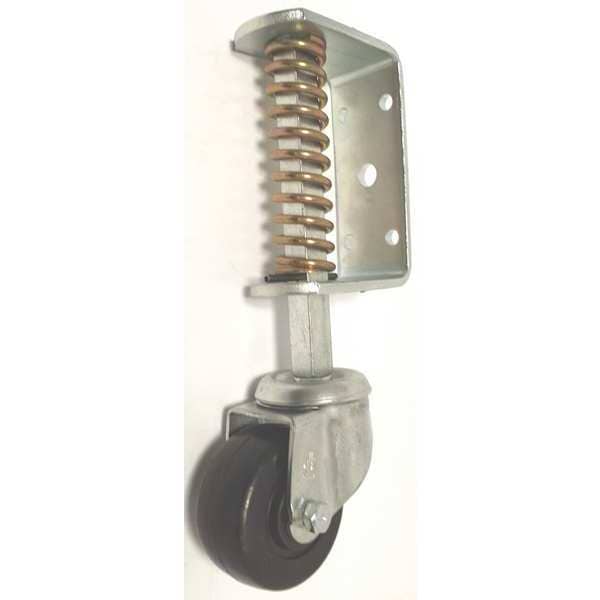

Door/Ladder Caster, Rubber, 3 in., 270 lb.

product price: $192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Wheel Width 1 3/8 in
  • Caster Wheel/Tread Material Rubber
  • Load Rating 210 lb
See all product information

Product Information

Dimensions

Wheel Width 1 3/8 in
Overall Height 11 1/4 in
Wheel Dia. 3 in
Stem Length No Stem
Stem Dia. No Stem
Plate Size 2" x 5-1/8"
Mounting Bolt Dia. 11/32 in
Mounting Plate Size 2 in x 5-1/8 in

Details

Item Side-Mount Caster
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Rubber
Load Rating 210 lb
Load Rating Range 0 to 299 lb
Wheel/Tread Material Rubber
Non-Marking No
Caster Frame Material Steel
Wheel Bearing Type Precision Ball
Frame Material Steel
Replacement Wheel Mfr. No. 03137-OH
Caster Core Material Rubber
Wheel Color Black
Side Mount Hole Pattern D
Caster Wheel Bearings Ball
Frame Finish Zinc Plated
Inside Bolt Hole Spacing 1-1/4 in x 3 in
Plate Thickness 1/4"
Caster Raceway Double Ball
Core Color Black
Wheel Core Material Rubber
Swivel Raceway Type Double Ball
Mounting Plate Bolt Hole Pattern J
Maximum Compression Force 200 lb
Maximum Compression 2 in
Outside Bolt Hole Spacing 1-1/4 in x 3 in

Description

Side-Mount Caster, 210 lb Load Rating, 0 to 299 lb Load Rating Range, 3 in Wheel Dia., 1 3/8 in Wheel Width, 11 1/4 in Overall Height, Wheel Bearing Type Precision Ball, J Mounting Plate Bolt Hole Pattern, Mounting Plate Size 2 in x 5-1/8 in, 1-1/4 in x 3 in Inside Bolt Hole Spacing, 1-1/4 in x 3 in Outside Bolt Hole Spacing, No Non-Marking, 2 in Maximum Compression, 200 lb Maximum Compression Force
