  11. Scaffold Plate Caster, Polyurethn, 2300 lb

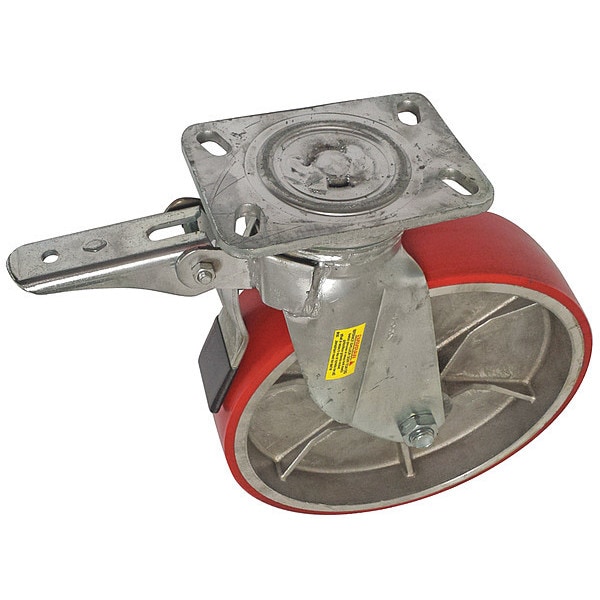

Payson Casters Scaffold Plate Caster, Polyurethn, 2300 lb 400-12UL-PB - main

Scaffold Plate Caster, Polyurethn, 2300 lb

  • Mfr # 400-12UL-PB

  • Zoro # G1884228

product price: $319.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
400-12UL-PB
Zoro #
G1884228
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
12 in
Wheel Width
3 in
Mounting Height
14 1/2 in
Mounting Plate Size
4 3/4 in x 6 5/8 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Overall Height
14-3/4in
Stem Dia.
No Stem
Inside Slot Spacing - Length
3.375 in
Mounting Plate Width
4 3/4 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
6 5/8 in
Overall Wheel Width
3 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
4.938 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Load Rating
2300 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Wheel Color
Red
Caster Stem Type
No Stem/Plate Included
Replacement Wheel
Mfr. No. 12300-UL
Caster Temp. Range Available
No
Wheel Core Material
Aluminum
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
Total Lock
Load Capacity - Maximum
2,300 lb
Compatible With
12300-UL
Brake Location
Rear
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Brick, Carpet, Concrete, Steel, Wood
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 2300 lb, Swivel Lock Type Total Lock, Wheel Dia. 12 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
