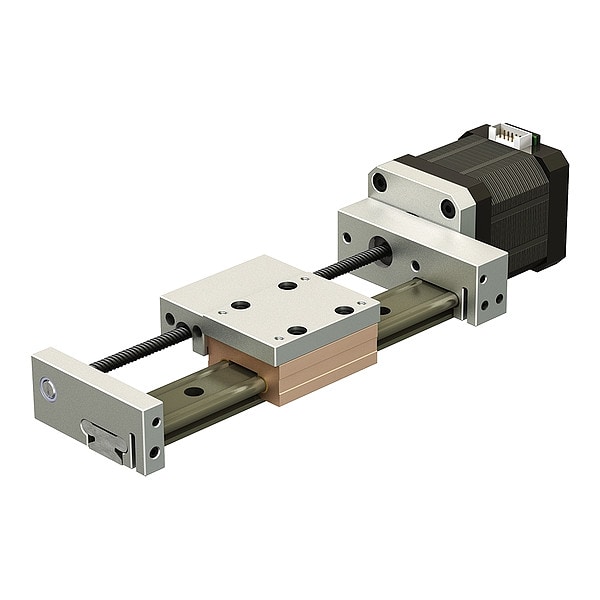

Compact Linear Actuator, 3,114 N, Plain
- Mfr # CSMR15D-000-0200-3A1-AGXR2-0
- Zoro # G109616079
product price:Â
$
824.99
/ea
Free Shipping & Returns
Key Features
Overall Height
64 mm
Carriage Type
Plain Bearing
Screw Type
Lead Screw
Rail Length
200 mm
Bearing Type
Plain
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CSMR15D-000-0200-3A1-AGXR2-0
- Zoro #
- G109616079
- UPC #
- -
- Country of Origin
- United States
- Item
- Compact Linear Actuator
- Carriage Type
- Plain Bearing
- Screw Type
- Lead Screw
- Bearing Type
- Plain
- Carriage Bearing Moment Load Capacity
- 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
- Speed
- 4,200 mm/sec
- Acceleration
- 50 m/sq sec
- Lubricant
- Petroleum Based Grease
- Nut Type
- Anti-Backlash
- Repeatability
- 0.02 mm
- Voltage Rating
- 24V
- Drive Input Speed
- 2,000 RPM
- Motor Type
- Stepper Motor
- Rail System Type
- Gliding Surface Rail
- Bearing Load Capacity
- 3,114 N
- Motor Mount Option
- NEMA 17 Single Stack
- Number of Carriages Included
- 1
- Travel Speed
- 4,200 mm/sec
- Maximum Acceleration
- 50 m/sq sec
- Cover Type
- No Cover
- Lubricant Type
- Petroleum Based Grease
Description
Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 3,114 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec
