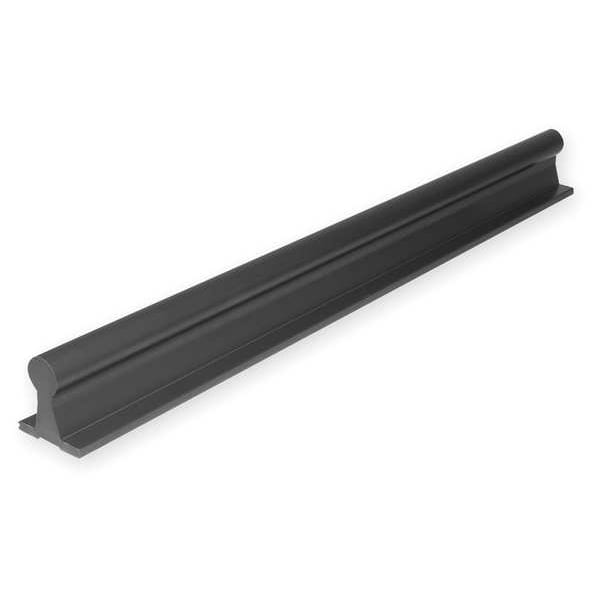

LinShaft w/Supp Rail, Alum, 0.5 In D, 12 In
Mfr # CCR08-012.000
Zoro # G0466356
product price: $90.39
/ea
Free Shipping & Returns
Key Features
Shaft Dia.
1/2 in
Material
Aluminum
Overall Height (In.)
1.375 in
Dimension F
0.169 in
Base Width (In.)
1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CCR08-012.000
Zoro #
G0466356
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1/2 in
Length
12 in
Overall Height (In.)
1.375 in
Dimension F
0.169 in
Base Width (In.)
1 in
Dia. Tolerance Min.
0.499 in
Travel Length (In.)
12 in
Dia. Tolerance Max.
0.5 in
Mounting Hole Size
0.169 in
Dimension B
1.5 in
Dimension E
1 in
Bolt Size
#6
Dimension C
0.25 in
Base Height (In.)
0.188 in
Shaft Diameter
1/2 in
Shaft Hole Thread Size
#6
Center Height
1.125 in
Support Rail Length
12 in
Rail Mount Hole Center to Center Width
1 in
Shaft Length
12 in
Rail Mount Hole Center to Center Length
4 in
Diameter Tolerance - Maximum
-0.0004 in
Rail Top Width
0.188 in
Rail Mount Hole Thread Size
#6
Center to Rail End Width
0.75 in
Rail Base Overall Width
1.5 in
Description
Pre-Drilled Linear Shaft Assembly, System of Measurement Inch, Shaft Diameter 1/2 in, Shaft Length 12 in, Shaft Material Aluminum, Shaft Material Finish Ceramic Coated, Center Height 1.125 in, Rail Base Overall Width 1.5 in, Diameter Tolerance - Maximum -0.0004 in, Support Rail Material Finish Ceramic Coated, Shaft Drilling Pre-Drilled, Shaft Hole Spacing 4 in, Shaft End to Hole 2 in, Shaft Hole Thread Size #6, Support Rail Drilling Pre-Drilled, Rail Top Width 0.188 in
