  9. Non-Captive Lead Screw, 0.003 in/ft Lead

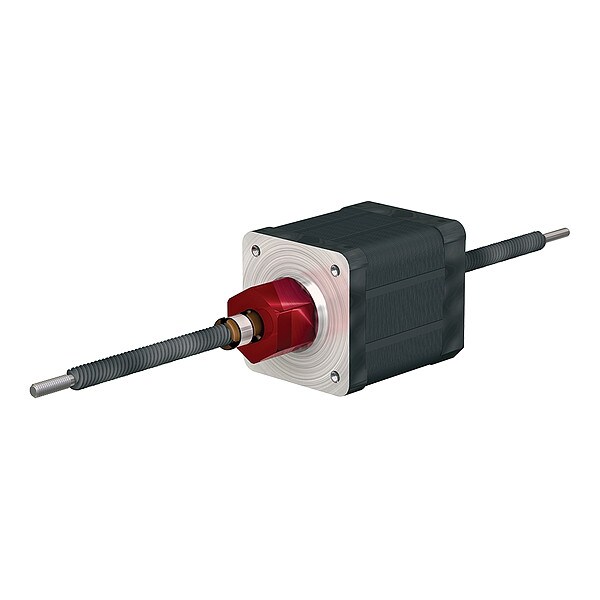

Pbc Linear Non-Captive Lead Screw, 0.003 in/ft Lead LSR18005T-08.00-NCF111-NNN-NNN - main

Non-Captive Lead Screw, 0.003 in/ft Lead

  • Mfr # LSR18005T-08.00-NCF111-NNN-NNN

  • Zoro # G310374935

product price: $301.99
/ea
Free Shipping & Returns

Key Features

Motor Maximum Operating Temperature
50 Degrees C
Nut Material
Stainless Steel
Motor Minimum Operating Temperature
-20 Degrees C
Screw Length
8 mm
Rated Current
1 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSR18005T-08.00-NCF111-NNN-NNN
Zoro #
G310374935
UPC #
-
Country of Origin
United States

Dimensions

Screw Length
8 mm
Screw Diameter
3/16 in
Motor Size
NEMA 11
Lead Length
0.05 in
Motor Length
41.0 mm

Details

Item
Non-Captive Lead Screw
Motor Maximum Operating Temperature
50 Degrees C
Nut Material
Stainless Steel
Motor Minimum Operating Temperature
-20 Degrees C
Rated Current
1 A
Winding Resistance
2.7 ohm
Screw Material Grade
300
Assembly Type
Non-Captive Lead Screw
Nut Type
Anti-Backlash
Coating Material
PTFE
Steps per Revolution
200
Screw Type
Lead Screw
Lead Accuracy
0.003 in/ft
Frame
NEMA 11
Electrical Connection
Plug-In Connector
Insulation Resistance
100 Mohm
Right End Components
None
Motor IP Rating
IP40
Motor Type
Stepper Motor
Step Accuracy
+/-5%
Left End Components
None
Phase
2
Insulation Class
B
Thread Direction
Right
Screw Material
Stainless Steel
Travel per Step
0.0003 in

Description

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Insulation Class B, Screw Diameter 3/16 in, Lead Length 0.05 in, Screw Length 8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw, Motor Type Stepper Motor
