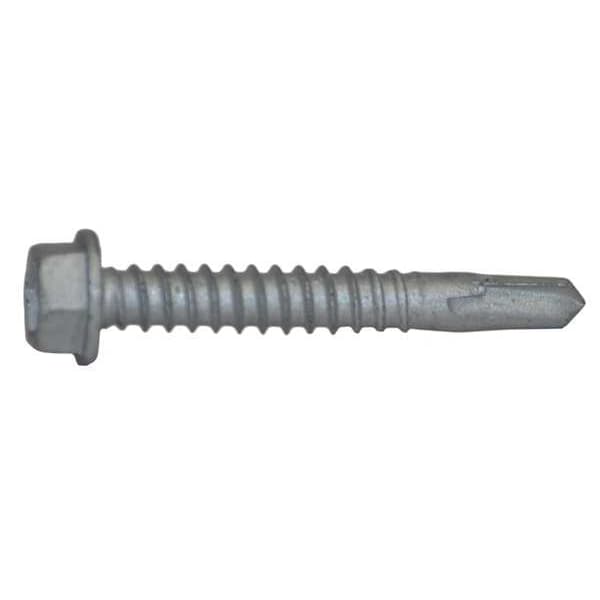

Self-Drilling Screw, #12 x 1-1/2 in, Climaseal Steel Flange Hex Head External Hex Drive, 250 PK
Mfr # 1123000
Zoro # G5013303
CAD Available
product price:Â
$
51.09
/pk of 250, $0.20/ea
Key Features
Flange Hex Head
External Hex Drive
Drilling Tip
CAD Drawing
Screw Size
#12
System of Measurement
Inch
Fastener Length
1-1/2 in
Drive Size
5/16 in
Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1123000
- Zoro #
- G5013303
- UPC #
- 092097922242
- Country of Origin
- Taiwan, Province of China
Dimensions
- Screw Size
- #12
- Fastener Length
- 1-1/2 in
- Drive Size
- 5/16 in
- Hex Width
- 0.313 in
- Head Height
- 0.19 in
- Drill Point Size
- 2
- Head Dia.
- 0.415 in
- Drill Tip Length
- 7/16 in
- Washer Outside Diameter
- 0.415 in
- Head Width
- 0.313 in
- Overall Length
- 1 1/2 in
- Maximum Head Width
- 5/16 in
- Maximum Drilling Thickness
- 0.21 in
- Maximum Head Height
- 3/16 in
- Thread Size
- #12-14
- Wire Rope Length
- 1 1/2 in
Description
The TEKS - 1123000 is a Self-Drilling Screw, intended for use in materials without requiring pre-drilled holes. These screws are commonly used in industrial and commercial settings such as metal fabrication, construction, and assembly. Made from steel with a Climaseal finish, these screws are made with a Climaseal finish intended to enhance their resilience and resistance to corrosion.
- Application: Can be used in tasks such as attaching various materials to metal of specific gauges, retrofit applications, anchoring metal clips on masonry facades or securing roofing panels.
- CAD Available: A Computer-Aided Design (CAD) file is available for accurate incorporation into digital project plans.
- Drive: Requires an External Hex tool for installation or removal.
- Fastener Length: With a length of 1-1/2 in., it determines how deeply it can penetrate and secure materials together.
- Head Type: The Flange Hex head type is compatible with specific tools and may be suitable for certain materials and applications.
- Material Grade/Class: C1022 grade is indicative of its specifications which may include strength, durability, and resistance against corrosion depending on project requirements.
- Screw Size: #12 screw size refers to its width and number of threads per inch that can affect how it interacts with different material types in industrial settings.
