Precion Lead Screw, 0.003 in/ft Lead
Mfr # LSR0601T-0200-VCF-080-NNN-N
Zoro # G709788534
product price:Â $335.99
/ea
Free Shipping & Returns
Key Features
Nut Drag Torque
0.0134 to 0.0164 Nm
Thread Direction
Right
Phase
2
Screw Material Grade
300
Coating Material
PTFE
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LSR0601T-0200-VCF-080-NNN-N
- Zoro #
- G709788534
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Lead Length
- 1 mm
- Nut Flange Diameter
- 17.8 mm
- Nut Diameter
- 10.2 mm
- Screw Length
- 200 mm
- Nut Length
- 22.2 mm
- Motor Length
- 29.5 mm
- Motor Size
- NEMA 8
- Nut Flange Thickness
- 3.4 mm
- Screw Diameter
- 6 mm
Description

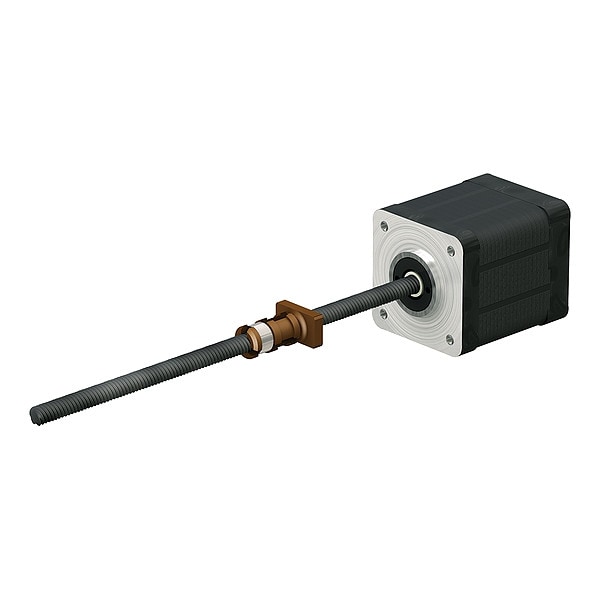

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 200 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
