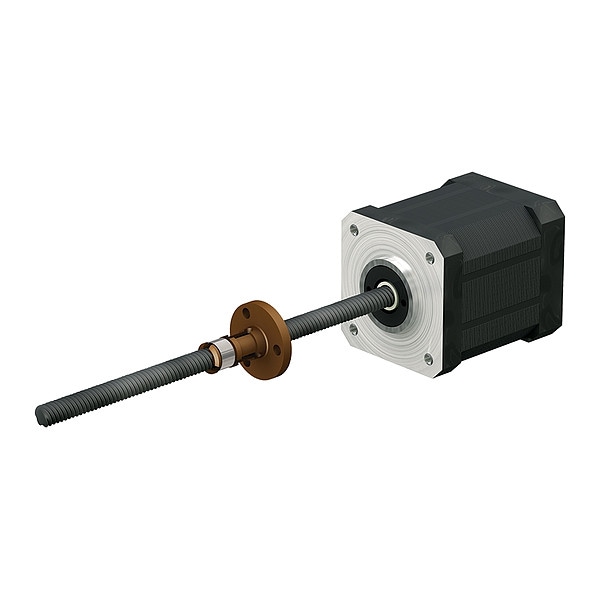

Precion Lead Screw, 0.003 in/ft Lead
Mfr # LSR1201T-0300-RCF-171-NNN-N
Zoro # G209788522
product price:Â
$
286.99
/ea
Free Shipping & Returns
Key Features
Motor Minimum Operating Temperature
-20 Degrees C
Nut Flange Thickness
6.4 mm
Motor Maximum Operating Temperature
50 Degrees C
Screw Material Grade
300
Screw Diameter
12 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LSR1201T-0300-RCF-171-NNN-N
- Zoro #
- G209788522
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nut Flange Thickness
- 6.4 mm
- Screw Diameter
- 12 mm
- Nut Bolt Circle Diameter
- 35.7 mm
- Motor Size
- NEMA 17
- Nut Flange Diameter
- 44.5 mm
- Nut Diameter
- 16.9 mm
- Screw Length
- 300 mm
- Lead Length
- 1 mm
- Nut Length
- 44.5 mm
- Motor Length
- 39.8 mm
- Nut Mounting Hole Diameter
- 5.6 mm
Description
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Nut Shape Round, Insulation Class B, Screw Diameter 12 mm, Lead Length 1 mm, Screw Length 300 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
