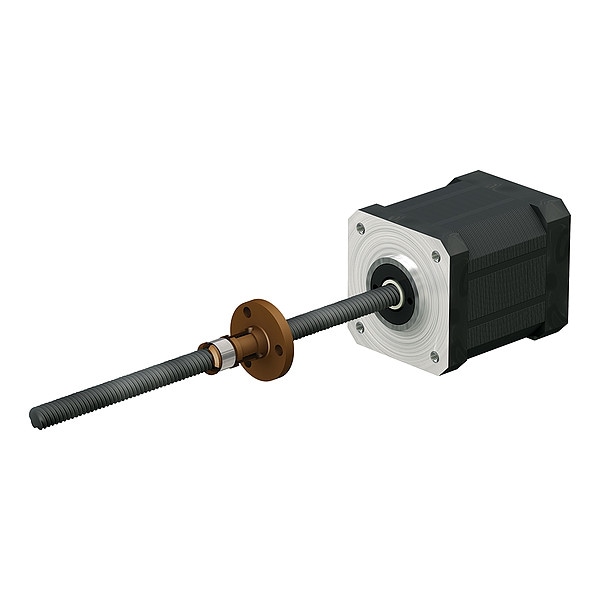

Precion Lead Screw, 0.003 in/ft Lead
Mfr # LSR1005T-0200-RCF-140-NNN-N
Zoro # G309788552
product price:Â $285.99
/ea
Free Shipping & Returns
Key Features
Lead Length
5 mm
Screw Diameter
10 mm
Nut Length
38.1 mm
Nut Mounting Hole Diameter
5.1 mm
Frame
NEMA 14
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
LSR1005T-0200-RCF-140-NNN-N
Zoro #
G309788552
UPC #
-
Country of Origin
United States
Dimensions
Lead Length
5 mm
Screw Diameter
10 mm
Nut Length
38.1 mm
Nut Mounting Hole Diameter
5.1 mm
Screw Length
200 mm
Nut Flange Thickness
4.8 mm
Motor Length
36.0 mm
Nut Diameter
15.9 mm
Nut Flange Diameter
38.1 mm
Nut Bolt Circle Diameter
28.6 mm
Motor Size
NEMA 14
Description
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Round, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 200 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
