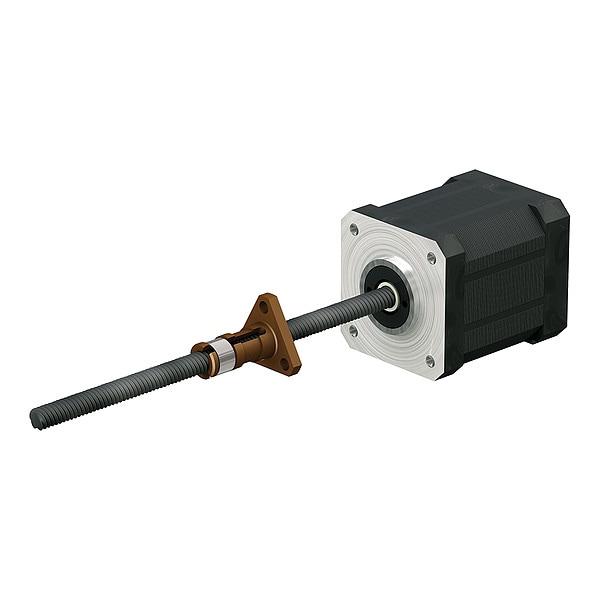

Precion Lead Screw, 0.003 in/ft Lead
Mfr # LSR1005T-0400-TCF-140-NNN-N
Zoro # G909788532
product price:Â
$
341.99
/ea
Free Shipping & Returns
Key Features
Nut Bolt Circle Diameter
28.6 mm
Nut Flange Diameter
38.1 mm
Nut Flange Thickness
4.8 mm
Nut Type
Anti-Backlash
Nut Shape
Triangle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LSR1005T-0400-TCF-140-NNN-N
- Zoro #
- G909788532
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nut Bolt Circle Diameter
- 28.6 mm
- Nut Flange Diameter
- 38.1 mm
- Nut Flange Thickness
- 4.8 mm
- Motor Size
- NEMA 14
- Screw Diameter
- 10 mm
- Nut Length
- 38.1 mm
- Lead Length
- 5 mm
- Motor Length
- 36.0 mm
- Screw Length
- 400 mm
- Nut Mounting Hole Diameter
- 5.1 mm
- Nut Diameter
- 15.9 mm
Description
Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Triangle, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 400 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
