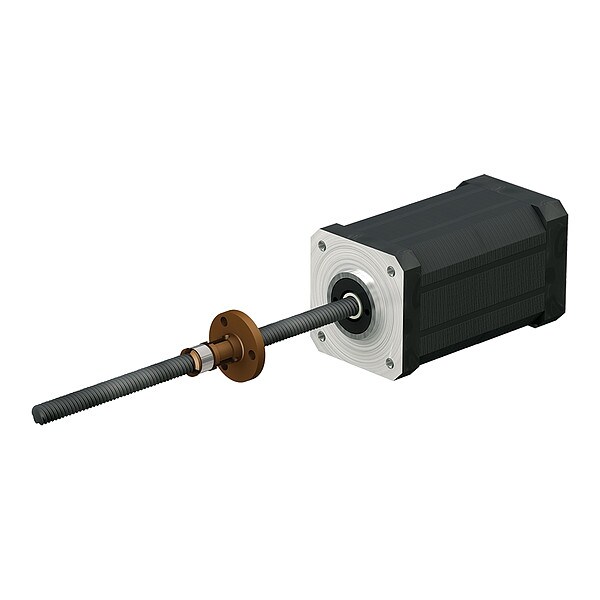

Pbc Linear Precion Lead Screw, 0.003 in/ft Lead LSR1205T-0500-RCF-172-NNN-N - main

Precion Lead Screw, 0.003 in/ft Lead

  • Mfr # LSR1205T-0500-RCF-172-NNN-N

  • Zoro # G209788560

product price: $378.99
/ea
Free Shipping & Returns

Key Features

Percent Efficiency
62%
Nut Material
Stainless Steel
Nut Flange Thickness
6.4 mm
Motor Maximum Operating Temperature
50 Degrees C
Nut Bolt Circle Diameter
35.7 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSR1205T-0500-RCF-172-NNN-N
Zoro #
G209788560
UPC #
-
Country of Origin
United States

Dimensions

Nut Flange Thickness
6.4 mm
Nut Bolt Circle Diameter
35.7 mm
Screw Length
500 mm
Nut Mounting Hole Diameter
5.6 mm
Motor Length
48.3 mm
Nut Flange Diameter
44.5 mm
Lead Length
5 mm
Screw Diameter
12 mm
Motor Size
NEMA 17
Nut Length
44.5 mm
Nut Diameter
16.9 mm

Details

Item
Precision Lead Screw
Percent Efficiency
62%
Nut Material
Stainless Steel
Motor Maximum Operating Temperature
50 Degrees C
Nut Drag Torque
0.0211 to 0.0264 Nm
Rated Current
2 A
Coating Material
PTFE
Screw Material Grade
300
Nut Shape
Round
Winding Resistance
1.3 ohm
Phase
2
Insulation Class
B
Screw Material
Stainless Steel
Nut Type
Anti-Backlash
Lead Accuracy
0.003 in/ft
Motor Type
Stepper Motor
Right End Components
None
Left End Components
None
Travel per Step
0.025 mm
Motor IP Rating
IP40
Screw Type
Lead Screw
Thread Direction
Right
Motor Minimum Operating Temperature
-20 Degrees C
Step Accuracy
+/-5%
Insulation Resistance
100 Mohm
Assembly Type
Lead Screw Assembly
Frame
NEMA 17
Steps per Revolution
200
Electrical Connection
Plug-In Connector
Nut Dynamic Load Capacity
703 N

Description

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Nut Shape Round, Insulation Class B, Screw Diameter 12 mm, Lead Length 5 mm, Screw Length 500 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Motor Length 48.3 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
