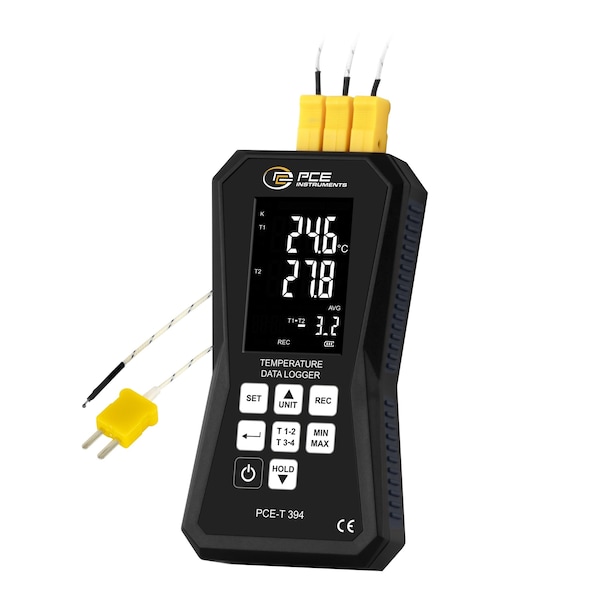

4-channel thermometer, Type K/J to 1370 deg C / 2498 deg F with 32k-record datalogger and USB
Mfr # PCE-T 394
Zoro # G522432348
product price:Â $242.99
/ea
Free Shipping & Returns
Key Features
Includes
4 x K-type wire probe -50 to 200°C / -58 to 392°F, 1 x Micro-USB cable, 1 x PC software, 1 x Service bag, 1 x Operating instructions
Measurement Functions
MIN, MAX, HOLD, average value
Length
6.5 in
Width
3.5 in
Storage Interval To
24 h
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-T 394
- Zoro #
- G522432348
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 6.5 in
- Width
- 3.5 in
- Display Size
- 2.8 in
Details
- Includes
- 4 x K-type wire probe -50 to 200°C / -58 to 392°F, 1 x Micro-USB cable, 1 x PC software, 1 x Service bag, 1 x Operating instructions
- Measurement Functions
- MIN, MAX, HOLD, average value
- Storage Interval To
- 24 h
- Display Refresh Rate
- 500 ms
- Display Type
- LCD
- Temperature Type K Resolution
- 0.1°C / 0.18°F
- Units
- °C, °F, K
- Temperature Type K Accuracy
- ±0.2% of Mw. 1°C / 1.8°F above -100°C / -148°F, ±0.5% of Mw. 2°C / 3.6°F below -100°C / -148°F
- Temperature Type J Resolution
- 0.1°C / 0.18°F
- Number Of Measuring Channels
- 4
- Storage Capacity
- 32,000 data records
- Temperature Type K Measuring Range
- -200°C to 1370°C / -328°F to 2498°F
- Storage Interval Of
- 1 s
- Temperature Type J Accuracy
- ±0.5% of Mw. 2°C / 3.6°F below -100°C / -148°F ±0.5% of Mw. 2°C / 3.6°F below -100°C / -148°F
- Temperature Type J Measuring Range
- -210°C to 1100°C / -346°F to 2012°F
Description
The thermometer offers precise temperature monitoring. With a measuring range of -210 to 1370 deg C and support for thermocouple types K and J, it enables accurate measurements in different environments. Its 4 input channels allow simultaneous monitoring of multiple measuring points, making it ideal for complex applications. Before the recording mode can be started, the thermometer must be connected to a PC via a micro USB port and the parameters configured using the PC software. The storage interval, the number of measured values and also the starting point of the data logger can be set. Up to 32000 data records can be recorded with this function. The interval can be set in steps from 1s to max. 24h. The thermometer software can also be used to export the data in pdf and csv format. The MIN, MAX, AVG and HOLD measurement functions enable precise data recording and analysis. The thermometer switches off automatically after 20 minutes of inactivity to save energy and extend the operating time of the 3.7 V Li-Ion battery. The "Auto Power Off" function can also be deactivated. The thermometer is charged via the micro-USB interface and comes in a practical case for transportation.
