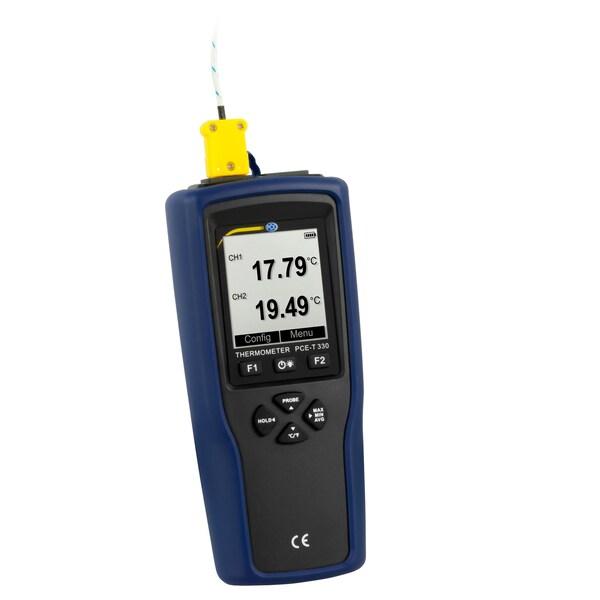

2-channel temperature datalogger, Type K/J/T to 2498 deg F with 20k-point memory and USB
Mfr # PCE-T 330
Zoro # G522432416
product price:Â $369.99
/ea
Free Shipping & Returns
Key Features
Temperature Sensor Resolution
Type K: 0.01°C, Type T: 0.01°C, Type J: 0.01°C
Interface
Micro-USB
Number Of Channels
2
Temperature Sensor Measuring Range
Type K: -200 to. 1370°C / -328 to. 2498°F, Type T: -200 to. 400°C / -328 to. 752°F, Type J: -200 to. 1200°C / -328 to. 2192°F
Data Storage
15,328 kB for 20,000 data points
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PCE-T 330
Zoro #
G522432416
UPC #
-
Country of Origin
China
Dimensions
Width
2.8 in
Length
6.8 in
Dimensions
173 x 71 x 38 mm / 6.8 x 2.8 x 1.5 in
Details
Temperature Sensor Resolution
Type K: 0.01°C, Type T: 0.01°C, Type J: 0.01°C
Interface
Micro-USB
Number Of Channels
2
Temperature Sensor Measuring Range
Type K: -200 to. 1370°C / -328 to. 2498°F, Type T: -200 to. 400°C / -328 to. 752°F, Type J: -200 to. 1200°C / -328 to. 2192°F
Data Storage
15,328 kB for 20,000 data points
Storage Interval
1-86,399 s
File Formats
TXT, CSV, XLS, DLG
Includes
1 x Thermocouple Type K, 1 x Micro-USB cable, 3 x 1.5 V AAA batteries, 1 x User manual
Units
°C /°F
Temperature Sensor Accuracy
Type K: ±0.3% of rdg. 0.4°C, Type T: ±0.3% of rdg. 0.4°C, Type J: ±0.3% of rdg. 0.4°C
Measuring Rate
2 Hz
Operating Conditions
-10 to 50°C / 14 to 122°F
Storage Conditions
-20-60°C / -4-140°F (without batteries)
Power Supply
3 x 1.2V AAA rechargeable batteries, 3 x 1.5V AAA batteries
Battery Life
ca. 190 hours(without backlight, battery capacity 1200 mAh, ambient temperature 25°C)
Description
The thermometer has two measuring inputs. Each measuring input from the thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 deg C, these rapid temperature fluctuations can also be displayed precisely by the thermometer. With a data memory of 20,000 measuring points, the thermometer can be used for a long period of time. A data point on the thermometer contains a measured value per channel and date as well as the current time. When the thermometer is connected to a computer, it is recognized as a removable disk. This allows the thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the thermometer can be saved as TXT, CSV, XLS and DLG format.
