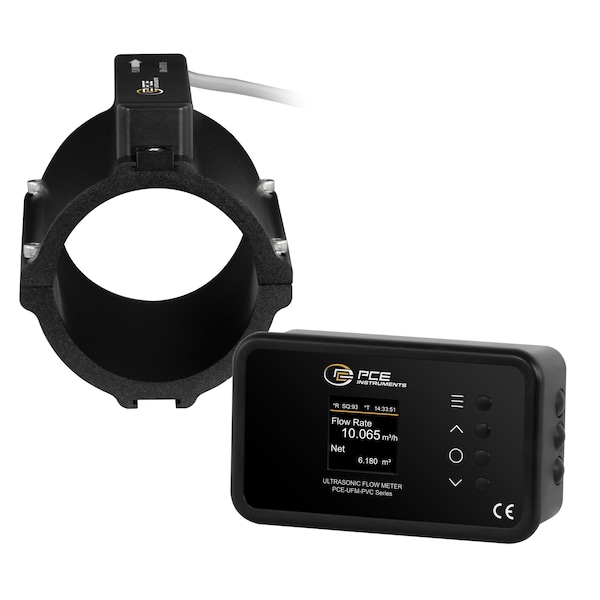

Clamp-on ultrasonic flow meter, 0.03-5 m/s for DN65 pipes with Ethernet PoE
Mfr # PCE-UFM 65PVC
Zoro # G722432667
product price:Â $2,368.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
DN65 (72 to 80 mm)
Resolution
0.01-m/s
Width
4.37 in
Length
2.56 in
Flow Range
0.03 to 5-m/s
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-UFM 65PVC
- Zoro #
- G722432667
- UPC #
- -
- Country of Origin
- China
Dimensions
- Pipe Size
- DN65 (72 to 80 mm)
- Width
- 4.37 in
- Length
- 2.56 in
Details
- Resolution
- 0.01-m/s
- Flow Range
- 0.03 to 5-m/s
- Protection Class
- IP54
- Pipe Material
- PVC
- For Use With
- Measurements on PVC pipes with a diameter between 72 and 80 mm
- Includes
- 1 x Ultrasonic testing device PCE-UFM 65PVC, 1 x Sensor with Ethernet cable 9 m, 1 x PoE network cable 2 m, 1 x Ultrasonic contact gel, 1 x Silicone seal 1 m, 4 x Coupling pad, 1 x Allen key, 1 x User manual
- Communication
- HTTP, MQTT
- Measured Medium
- Water
- Accuracy (%)
- ±2 % of Rd (0.3 to 5-m/s)
- Power Requirement
- PoE
Description
Our ultrasonic flow test instrument offers the capability to measure flow rates from +/-0.1 m/s to +/-5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN8 / 1/4 in and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe. The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface. With a power supply range of 9 ... 36 V DC, the ultrasonic flow test instrument is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission. This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.
