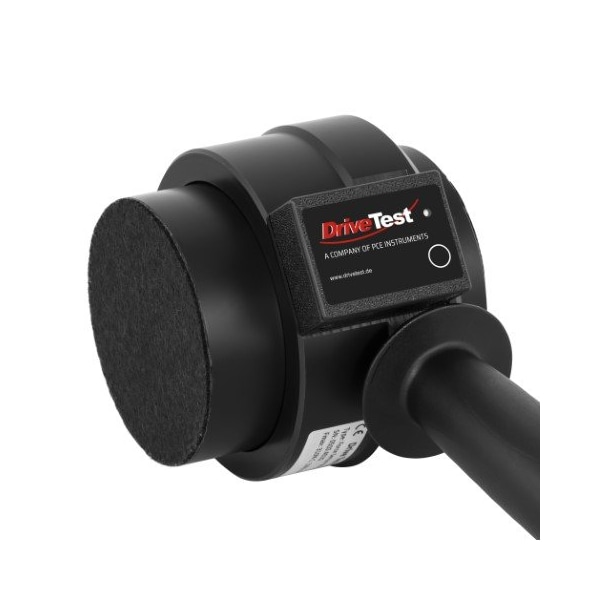

Closing Force Transducer BIA-1 BT for Bus and Train Doors and Sliding Steps
Mfr # BIA1BT-SY-10-310
Zoro # G014921985
product price:Â
$
5,031.99
/ea
Free Shipping & Returns
Key Features
Accuracy
+/- 3 N or 3% of reading
Includes
App Force Meter available for download in the Google Play Store, Software PinchPilot (USB stick), USB cable, Manual, Transport case, ISO calibration certificate
Range
25 - 310 N
Power Source
5 V DC via USB max. 500 mA, Lithium polymerbattery 350 mAh
Sampling Rate
250 Hz / 4 ms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BIA1BT-SY-10-310
- Zoro #
- G014921985
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Diameter
- 100 mm / 3.9"
- Gap width
- 115 mm / 4.5"
- Length
- 5.1 in
- Width
- 10.2 in
Details
- Accuracy
- +/- 3 N or 3% of reading
- Includes
- App Force Meter available for download in the Google Play Store, Software PinchPilot (USB stick), USB cable, Manual, Transport case, ISO calibration certificate
- Range
- 25 - 310 N
- Power Source
- 5 V DC via USB max. 500 mA, Lithium polymerbattery 350 mAh
- Sampling Rate
- 250 Hz / 4 ms
- Resolution
- 1 N
- Stiffness
- 10 N/mm
- Measuring Principle
- DMS transducer
- Battery life under full load
- More than 10 hours
- For Use With
- Rail vehicle, bus doors and sliding steps.
Description
The closing force transducer is a wireless, electronic closing force measuring device for rail vehicle and bus doors and sliding steps. A further development of the tried and tested Original BIA Class 1 measuring device is supplied with the closing force transducer. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.
