Coating Thickness Gauge, 0 to 1250 um
Mfr # PCE-CT 28
Zoro # G804852451
product price:Â
$
708.99
/ea
Free Shipping & Returns
Key Features
Includes
Carrying case, 4 x Batteries, Set of calibration standards, User's manual
Accuracy
±2 % or 2.5 µm / 0.10 mils (highest reading is valid)
Measuring Range
0 to 1250 μm (0 to 49.2 mils)
Application
Suitable for most applications
Resolution (In.)
0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils), 1 µm / 0.04 mils(above the range)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PCE-CT 28
- Zoro #
- G804852451
- UPC #
- 4250348700681
- Country of Origin
- China
- Includes
- Carrying case, 4 x Batteries, Set of calibration standards, User's manual
- Accuracy
- ±2 % or 2.5 µm / 0.10 mils (highest reading is valid)
- Measuring Range
- 0 to 1250 μm (0 to 49.2 mils)
- Application
- Suitable for most applications
- Resolution (In.)
- 0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils), 1 µm / 0.04 mils(above the range)
Description

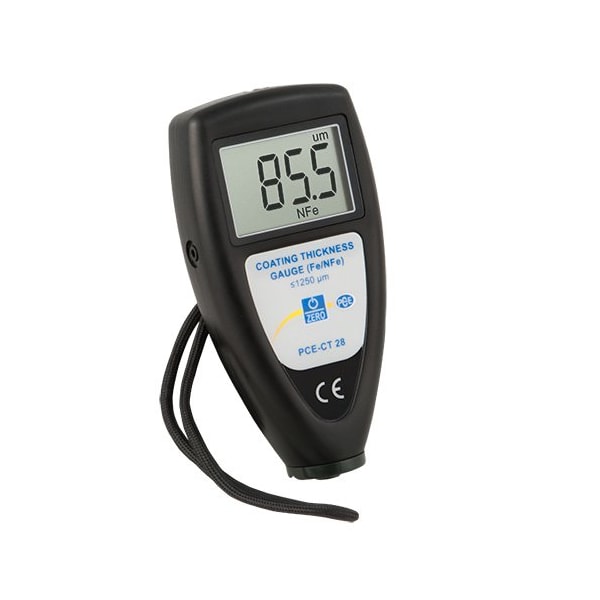

Thickness Gauge Determines the thickness of the coating on steel or iron (F) / Non-ferrous metals (N) with a high range of measurement The Thickness Gauge on cars is for measuring the thickness of paint and plastic. F / N: for materials including iron, steel, aluminum, copper, brass, and stainless steel. Elastic lined measuring head to ensure accurate results and prevent wear. The v-slot simplifies the measurement on round surfaces acting as a reference or axis point. Can be operated comfortably with only one hand thanks to its design and integrated sensor. Comes complete with a battery, carrying case, calibration standards, and user's manual.
