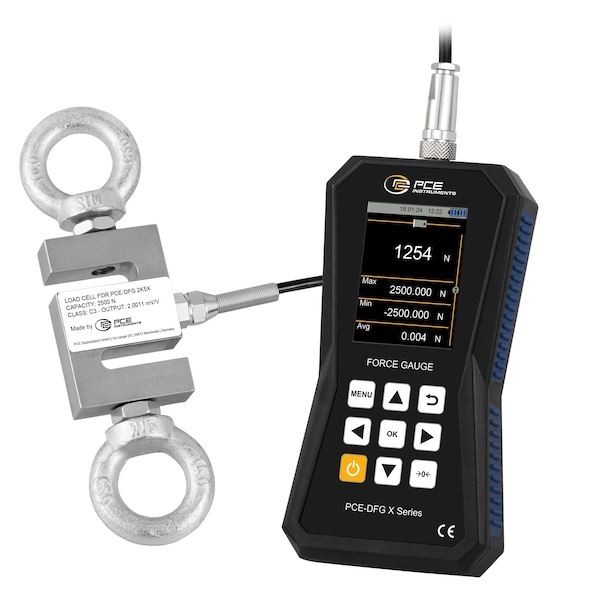

Force gauge for tension and compression, measures 2,500 N / 562 lbf with high resolution
Mfr # PCE-DFG 2K5 X
Zoro # G822432307
product price:Â $1,724.99
/ea
Free Shipping & Returns
Key Features
Includes
1 x Load cell PCE-DFG 2K5 X load cell, 2 x Eyebolt with M12 thread, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
Memory Interval Of
1 Hz
Application
To measure both tensile and compressive forces
Measuring Range
0 to 2500 N
Automatic Switch-Off Adjustable
1 to 15 min.
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-DFG 2K5 X
Zoro #
G822432307
UPC #
-
Country of Origin
Germany
Dimensions
Display Size
2.8 in
Length
6.5 in
Width
3.35 in
Details
Includes
1 x Load cell PCE-DFG 2K5 X load cell, 2 x Eyebolt with M12 thread, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
Memory Interval Of
1 Hz
Application
To measure both tensile and compressive forces
Measuring Range
0 to 2500 N
Automatic Switch-Off Adjustable
1 to 15 min.
Resolution
1 N
Accuracy
± 0.05 % F.S
Memory Medium
Internal memory
Alarm
Optical, acoustic
Adjustable Measurement Rate
1 to 7200 Hz
For Use With
To measure both tensile and compressive forces
Measuring Units
kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm
Automatic Switch-Off Can Be Deactivated
Yes
Memory Interval Up To
7200 Hz
Display
LCD with illumination
Operating Time
13 Hrs
Storage Capacity
32 GB
Description
The Tension Dynamometer / Tension Load Cell can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Tension Dynamometer / Tension Load Cell is supplied with an external measuring cell and can measure forces of up to 2,500 N / 562 lbf. Various eyelets or hooks with an M12 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement protocols to be created, saved and exported. The force tester has a USB-C interface that can be used to read the measurement data into the PC software. The force tester is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. The measuring cell is protected to IP67 and can therefore also be used in harsh industrial environments. Various force test stands are available for adapting the Tension Dynamometer / Tension Load Cell. A special feature of the force tester is the possibility to exchange the measuring cell between the models. By entering the sensitivity in mV/V, all measuring cells can be used with just one handheld device.
