Force gauge for tension and compression, measures 20,000 N / 4,496 lbf with high resolution
Mfr # PCE-DFG 20K XF
Zoro # G822432413
product price:Â
$
2,616.99
/ea
Free Shipping & Returns
Key Features
Interface
USB-C
Storage Interval To
7200 Hz
Width
3.35 in
Display Size
2,8 in
Measuring Units
N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 20K XF
- Zoro #
- G822432413
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 3.35 in
- Display Size
- 2,8 in
- Length
- 6.5 in
Details
- Interface
- USB-C
- Storage Interval To
- 7200 Hz
- Measuring Units
- N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
- Resolution
- 2 N
- Accuracy
- ±0.05 % FS
- Includes
- 1 x Pressure cell PCE-DFG 20K XF load cell, 1 x PC software, 1 x Suitcase, 1 x USB-C cable, 1 x Quick Start Guide
- Storage Capacity
- 32 GB
- Application
- For measuring compressive forces at hard-to-reach measuring points
- Display
- LCD with backlight
- Storage Medium
- Internal memory
- Operating Time
- 13 Hrs
- Adjustable Measuring Rate
- 1 to 7200 Hz
- For Use With
- For measuring compressive forces at hard-to-reach measuring points
- Automatic Power-Off Can Be Deactivated
- Yes
- Storage Interval From
- 1 Hz
- Measurement Range
- 0 to 20 kN
Description

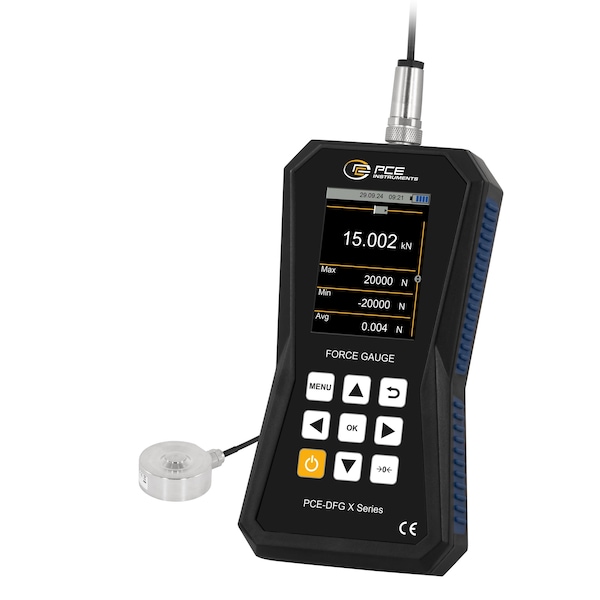

The Force Gauge / Digital Force Gauge with an external pressure load cell is designed for measuring compressive forces at measuring locations that are difficult to access. The Force Gauge / Digital Force Gauge or rather the pressure load cell has several threaded holes at the bottom that allow it to be mounted securely. The load cell is connected to the Force Gauge / Digital Force Gauge via an approx. 3 m / 9.8 ft long sensor cable and, thanks to the compact cell dimensions, it can be used for a wide range of applications. The internal memory of 32 GB can hold 30 million measuring points. This allows measurement protocols to be created, saved and exported. The Force Gauge / Digital Force Gauge has a USB-C interface that can be used to import the measurement data into the PC software. The device is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range. The measuring cell is IP67 protected and can therefore also be used in rough industrial environments.
