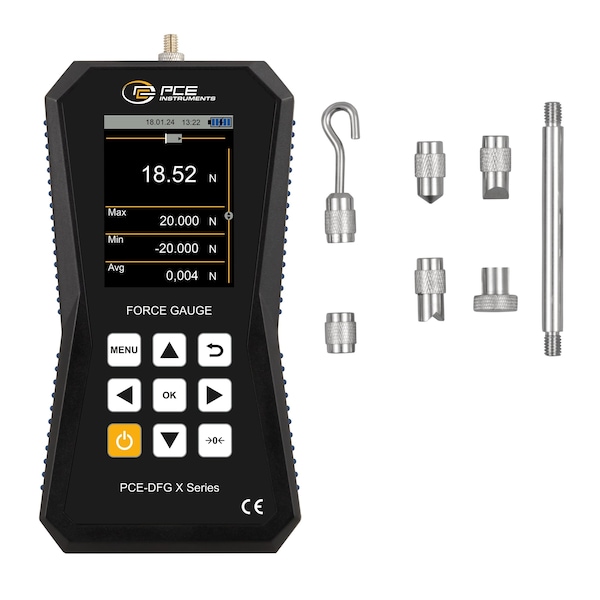

Force gauge for tension and compression, measures 20 N / 4.50 lbf with high resolution
Mfr # PCE-DFG 20 X
Zoro # G322432388
product price:Â $1,182.99
/ea
Free Shipping & Returns
Key Features
Measuring Range
0 N to 20 N
Alarm
Optical, acoustic
Accuracy
± 0.05 % F.S
Operating Time
13 Hrs
For Use With
To measure both tensile and compressive forces
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 20 X
- Zoro #
- G322432388
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- 6.5 in
- Width
- 3.35 in
- Display Size
- 2.8 in
Details
- Measuring Range
- 0 N to 20 N
- Alarm
- Optical, acoustic
- Accuracy
- ± 0.05 % F.S
- Operating Time
- 13 Hrs
- For Use With
- To measure both tensile and compressive forces
- Memory Interval Of
- 1 Hz
- Measuring Units
- N, kg, kN, Pa, kPa, Nm, lb, ft, g
- Includes
- 1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
- Storage Capacity
- 32 GB
- Memory Medium
- Internal memory
- Alarm Modes
- Inside, Outside, Crack, Switch off
- Adjustable Measurement Rate
- 1 to 7200 Hz
- Application
- To measure both tensile and compressive forces
- Automatic Switch-Off Adjustable
- 1 to 15 min.
- Memory Interval Up To
- 7200 Hz
- Resolution
- 0.01
- Automatic Switch-Off Can Be Deactivated
- Yes
Description
The dynamometer can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The dynamometer has an internal measuring cell and can measure forces up to 20 N / 4.5 lbf. Various eyelets or hooks with M6 threads can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The dynamometer has a USB-C interface that can be used to read the measurement data into the PC software. The dynamometer is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. Various force test stands are available for adapting the force transducer.
