Force gauge for tension and compression, measures 500 N / 112.4 lbf with high resolution
Mfr # PCE-DFG 0K5 XF
Zoro # G422432271
product price:Â $1,874.99
/ea
Free Shipping & Returns
Key Features
Accuracy
±0.05 % FS
Includes
1 x Pressure cell PCE-DFG 0K5 XF load cell, 1 x PC software, 1 x suitcase, 1 x USB-C cable, 1 x Quick Start Guide
Resolution
0.5 N
Application
For measuring compressive forces at hard-to-reach measuring points
Storage Medium
Internal memory
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- PCE-DFG 0K5 XF
- Zoro #
- G422432271
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Display Size
- 2,8 in
- Width
- 3.35 in
- Length
- 6.5 in
Details
- Accuracy
- ±0.05 % FS
- Includes
- 1 x Pressure cell PCE-DFG 0K5 XF load cell, 1 x PC software, 1 x suitcase, 1 x USB-C cable, 1 x Quick Start Guide
- Resolution
- 0.5 N
- Application
- For measuring compressive forces at hard-to-reach measuring points
- Storage Medium
- Internal memory
- Automatic Power-Off Can Be Deactivated
- Yes
- For Use With
- For measuring compressive forces at hard-to-reach measuring points
- Measuring Units
- N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft
- Interface
- USB-C
- Storage Interval From
- 1 Hz
- Display
- LCD with backlight
- Storage Interval To
- 7200 Hz
- Storage Capacity
- 32 GB
- Operating Time
- 13 Hrs
- Adjustable Measuring Rate
- 1 to 7200 Hz
- Measurement Range
- 0 to 500 N
Description

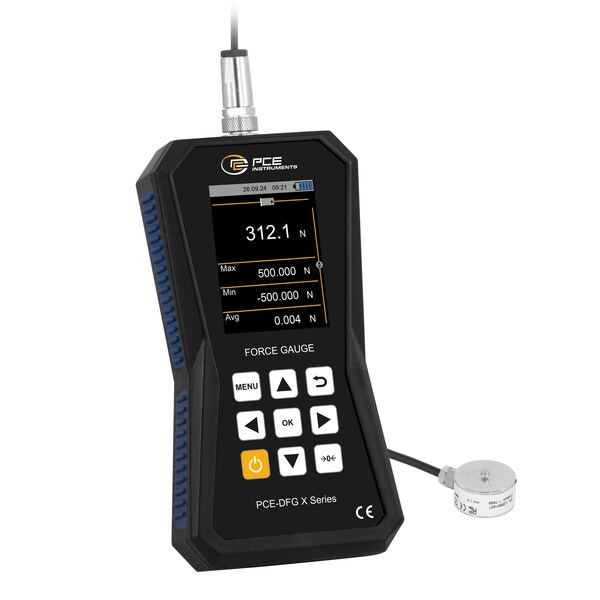

The Force Gauge / Digital Force Gauge with an external pressure load cell is designed for measuring compressive forces at measuring locations that are difficult to access. The Force Gauge / Digital Force Gauge or rather the pressure load cell has several threaded holes at the bottom that allow it to be mounted securely. The load cell is connected to the Force Gauge / Digital Force Gauge via an approx. 3 m / 9.8 ft long sensor cable and, thanks to the compact cell dimensions, it can be used for a wide range of applications. The internal memory of 32 GB can hold 30 million measuring points. This allows measurement protocols to be created, saved and exported. The Force Gauge / Digital Force Gauge has a USB-C interface that can be used to import the measurement data into the PC software. The device is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range. The measuring cell is IP67 protected and can therefore also be used in rough industrial environments.
