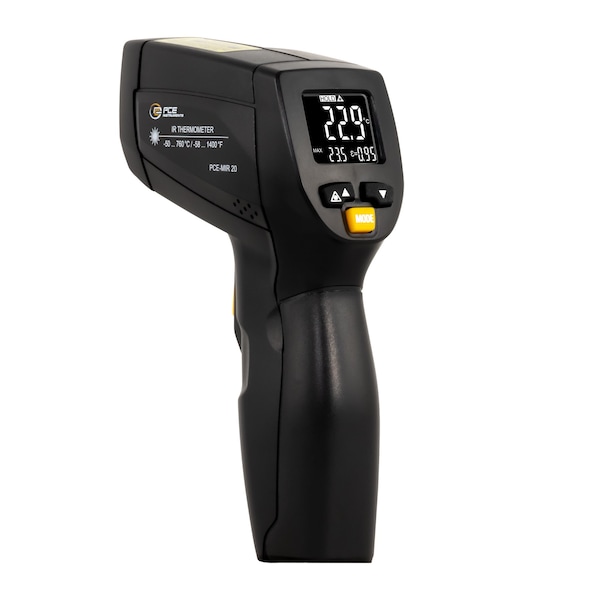

Infrared thermometer for surface temperature, measures -58-1112 deg F with 16:1 optics

  • Mfr # PCE-MIR 20

  • Zoro # G822432260

product price:
$
87.99
/ea

Key Features

Measuring Rate
2 Hz
Application
For surface temperature testing of electric motors, combustion engines or heat sinks
Operating Conditions
00 to 50°C / 32 to 122°F, <90% r. h
Measuring Range
-50 to 760°C / -58 to 1400°F
Width
3.0 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PCE-MIR 20
Zoro #
G822432260
UPC #
-
Country of Origin
China
Measuring Rate
2 Hz
Application
For surface temperature testing of electric motors, combustion engines or heat sinks
Operating Conditions
00 to 50°C / 32 to 122°F, <90% r. h
Measuring Range
-50 to 760°C / -58 to 1400°F
Spectral Range
8-14 µm
For Use With
For surface temperature testing of electric motors, combustion engines or heat sinks
Laser
Output power: <1 mW; wavelength: 630 to 670 mm; Laser class: 2
Includes
1 x Carrying bag, 1 x Instruction manual
Spot Ratio
12:1
Emissivity Value
0.10 to 1.00
Accuracy
±3°C / 5.4°F at -50 to 20°C / -58 to 68°F ±2% ±2°C / 3.6°F at 20 to 760°C / 68 …1400°F
Repeatability
±1°C / ±1.8°F
Resolution
0.1°C / 0.1°F
Storage Conditions
-10 to 60°C / 14 to 140°F, <80% r. h.

Description

The infrared temperature meter has a measuring range of -5 ... 76 deg C and thus covers a wide temperature range. With an accuracy of +/-2% +/-2 deg C at 2 ... 76 deg C, the infrared temperature measuring device is a very precise measuring instrument. For better orientation of the measuring spot, two lasers are built into the infrared temperature measuring device. Both lasers have an output power of <1 mW. In order to determine different surfaces with the infrared temperature measuring device, the emission value can be set between .1 ... 1.. With the limit value alarm function on the infrared temperature measuring device, a minimum temperature and a maximum temperature can be set individually. If the set limit value is exceeded or undershot during a measurement with the infrared temperature measuring device. This is immediately signalled acoustically and visually by the infrared temperature measuring device. To switch on the infrared temperature measuring device, the measuring button must be pressed. The measurement is then immediately taken by the infrared temperature measuring device. If the button is released, the last value remains on the display of the infrared temperature measuring device until a new measurement is carried out. Optionally, the infrared temperature measuring device can be equipped with an ISO calibration certificate.
