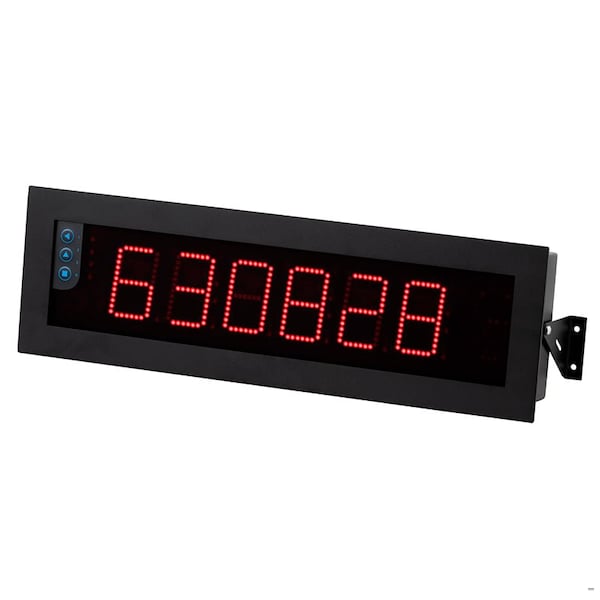

Large Format Indicator
- Mfr # PCE-BPD-U-41A
- Zoro # G516547119
product price:Â
$
1,772.99
/ea
Free Shipping & Returns
Key Features
Accuracy
0.05 % of measuring range
Input Signal
4 - 20mA, ±20mA DC, 0 - 10V DC, ±10V DC
Sensor Power Supply Accuracy
±5 %
Power supply
85 - 265 V AC / 120 - 370 V DC
Dimensions C
3 mm / 0.1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PCE-BPD-U-41A
- Zoro #
- G516547119
- UPC #
- -
- Country of Origin
- Spain
- Accuracy
- 0.05 % of measuring range
- Input Signal
- 4 - 20mA, ±20mA DC, 0 - 10V DC, ±10V DC
- Sensor Power Supply Accuracy
- ±5 %
- Power supply
- 85 - 265 V AC / 120 - 370 V DC
- Function
- to convert analog signal into a usable value
- Measuring Rate
- 15 Hz
- For Use With
- Panel meter designed in such a way that the measured values displayed can be read from a large distance.
- Maximum Sensor Supply Current
- 35 mA (with short-circuit protection)
- Number of Digits
- 4
- Input Impedance – Current
- 11 kΩ
- Viewing Angle
- 120°
- Sensor Voltage Supply
- 20, 15, 10, 5 V DC
- Display
- 7 segment display
- Number of Outputs
- 2
- Display Range
- -1999 to 9999
- Input Impedance – Voltage
- 932 Ω
- Max. Reading Distance
- 50 m / 164 ft
- Warm-Up Time
- 15 min
- Operating Conditions
- 0 - 50°C / 32 - 122°F, <90% RH, non-condensing
- Storage Conditions
- -20 - 70°C / -4 - 158°F, <90% RH, non-condensing
- Max. Input Signal
- 100 mA or 100 V DC
- Application
- Panel meter designed in such a way that the measured values displayed can be read from a large distance.
- Includes
- 1 x Instruction Manual
Description
The digital universal indicator is designed in such a way that the measured values displayed can be read from a large distance. With a digit height of 6 mm or 1 mm, the reading distance for the digital universal indicator is 25 m / 82 ft or 50 m / 164 ft. The red LEDs of the digital universal indicator enable reading of the measured values even in very bright surroundings. The housing of the digital universal indicator is made of metal and is splash-proof with IP65. Thus, the digital universal indicator can be used under harsh environmental conditions.Many different variants are available as input signals for digital universal indicators. Among other things, the industry supports digital displays 4 ... 2 mA and pulses. The digital universal indicator is configured directly via the keypad. Digital display output interfaces are optionally available for industry. This makes it possible to switch process signals and pulses via the digital universal indicator when a limit value is reached, for example.The digital universal indicator can be aligned vertically for optimal alignment when mounted on the wall. In addition to wall mounting, the digital universal indicator can be mounted on a control cabinet. The insulation on the housing of the digital universal indicator ensures that no water can get into the control cabinet.
