Large Format Indicator
- Mfr # PCE-BPD-U-41D
- Zoro # G216547129
product price:Â
$
1,772.99
/ea
Free Shipping & Returns
Key Features
Accuracy
0.05 % of measuring range
Input Impedance – Current
11 kΩ
Number of Digits
4
Max. Reading Distance
50 m / 164 ft
Function
to convert analog signal into a usable value
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PCE-BPD-U-41D
- Zoro #
- G216547129
- UPC #
- -
- Country of Origin
- Spain
- Accuracy
- 0.05 % of measuring range
- Input Impedance – Current
- 11 kΩ
- Number of Digits
- 4
- Max. Reading Distance
- 50 m / 164 ft
- Function
- to convert analog signal into a usable value
- Sensor Power Supply Accuracy
- ±5 %
- Sensor Voltage Supply
- 20, 15, 10, 5 V DC
- Power supply
- 11 - 36 V DC
- Input Signal
- 4 - 20mA, ±20mA DC, 0 - 10V DC, ±10V DC
- Operating Conditions
- 0 - 50°C / 32 - 122°F, <90% RH, non-condensing
- Viewing Angle
- 120°
- Display Range
- -1999 to 9999
- Number of Outputs
- 2
- Storage Conditions
- -20 - 70°C / -4 - 158°F, <90% RH, non-condensing
- Maximum Sensor Supply Current
- 35 mA (with short-circuit protection)
- Warm-Up Time
- 15 min
- Input Impedance – Voltage
- 932 Ω
- Display
- 7 segment display
- Max. Input Signal
- 100 mA or 100 V DC
- Measuring Rate
- 15 Hz
- For Use With
- Panel meter designed in such a way that the measured values displayed can be read from a large distance.
- Application
- Panel meter designed in such a way that the measured values displayed can be read from a large distance.
- Includes
- 1 x Instruction Manual
Description

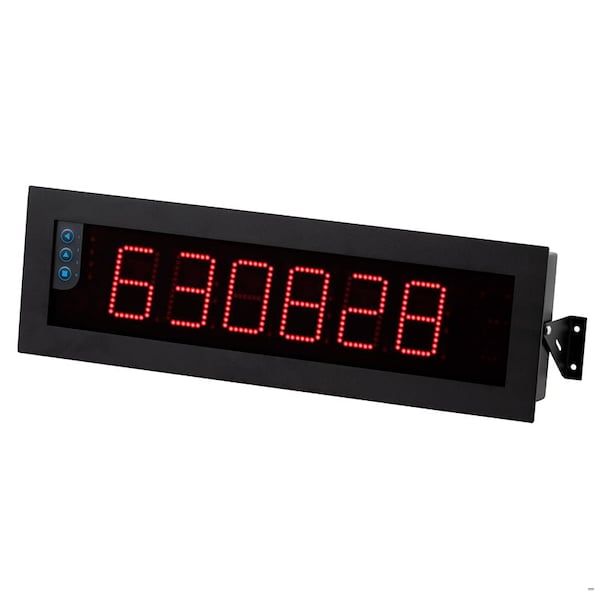

The digital universal indicator is designed in such a way that the measured values displayed can be read from a large distance. With a digit height of 6 mm or 1 mm, the reading distance for the digital universal indicator is 25 m / 82 ft or 50 m / 164 ft. The red LEDs of the digital universal indicator enable reading of the measured values even in very bright surroundings. The housing of the digital universal indicator is made of metal and is splash-proof with IP65. Thus, the digital universal indicator can be used under harsh environmental conditions.Many different variants are available as input signals for digital universal indicators. Among other things, the industry supports digital displays 4 ... 2 mA and pulses. The digital universal indicator is configured directly via the keypad. Digital display output interfaces are optionally available for industry. This makes it possible to switch process signals and pulses via the digital universal indicator when a limit value is reached, for example.The digital universal indicator can be aligned vertically for optimal alignment when mounted on the wall. In addition to wall mounting, the digital universal indicator can be mounted on a control cabinet. The insulation on the housing of the digital universal indicator ensures that no water can get into the control cabinet.
