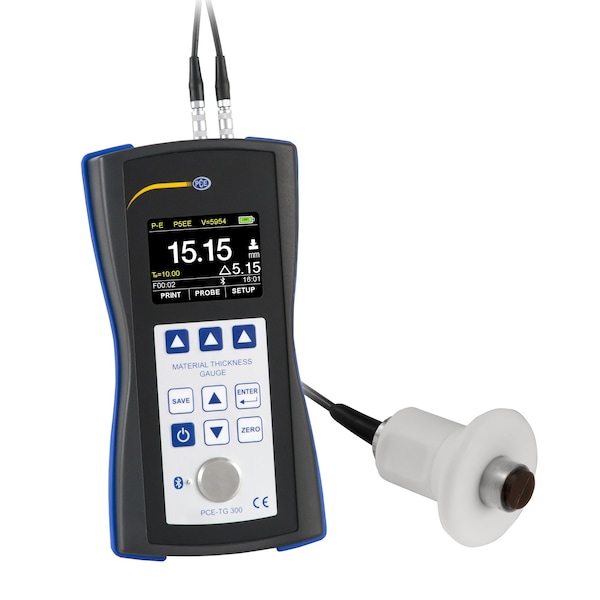

Material thickness meter, 1-600 mm range with 5 MHz HT probe (to 572 deg F) and Bluetooth/USB
Mfr # PCE-TG 300-HT5
Zoro # G222432402
product price: $1,920.99
/ea
Free Shipping & Returns
Key Features
For Use With
To measure the wall thicknesses of all homogeneous materials
Application
To measure the wall thicknesses of all homogeneous materials
Sensor Frequency
5 MHz
Calibration
sound velocity calibration, zero calibration, two-point calibration
Working Modes
Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g., paint)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PCE-TG 300-HT5
Zoro #
G222432402
UPC #
-
Country of Origin
Germany
Dimensions
Width (In.)
3.8 in
Sensor Diameter
12 mm / 0.47"
Sensor Minimum Diameter Of Pipes
30 mm / 1.18"
Length (In.)
7.3 in
Details
For Use With
To measure the wall thicknesses of all homogeneous materials
Application
To measure the wall thicknesses of all homogeneous materials
Sensor Frequency
5 MHz
Calibration
sound velocity calibration, zero calibration, two-point calibration
Working Modes
Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g., paint)
Units
mm / inch
Measuring Range (E-E, Echo-Echo)
2.50 to 100 mm / 0.098 to 2.36" (only with PCE‑TG 300‑P5EE sensor)
Features
Large measuring range, Various sensors available, Battery operation, Error and voids detection, Internal measurement data memory, Print via Bluetooth
View Mode
Normal Mode; Scan Mode; Difference Mode
Sensor Measuring Range
1 to 600 mm / 0.039 to 23.62" (steel)
Resolution (mm)
0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Measurable Materials
Metals; Plastics; Ceramics; Epoxy Resin; Glass and All Homogeneous Materials
Measuring Range (P-E, Pulse-Echo)
0.65 to 600 mm / 0.025 to 23.62" (steel)
Includes
1 x Sensor PCE-TG-HT5, 1 x 100 ml coupling gel, 1 x Transport case, 4 x AA batteries, 1 x User manual
Accuracy
±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) ; H refers to the material thickness of the workpiece
Sensor Model
PCE-TG-HT5
Sensor Description
for high temperatures (max. 300 °C / 572 °F)
Description
This Ultrasonic testing device with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90 deg sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured (only with PCE-TG 300-P5EE sensor).
