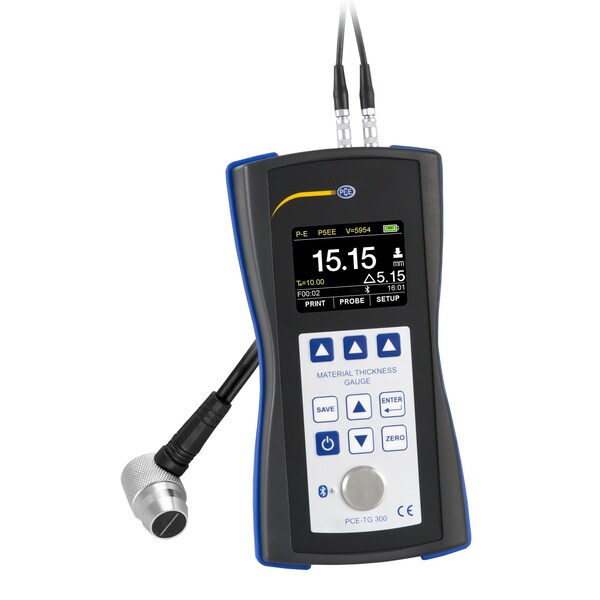

Material thickness meter, 2-600 mm PE / 2.5-100 mm EE with 5 MHz probe and Bluetooth/USB
Mfr # PCE-TG 300-P5EE
Zoro # G422432462
product price: $2,057.99
/ea
Free Shipping & Returns
Key Features
Accuracy
±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) ; H refers to the material thickness of the workpiece
Working Modes
Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g., paint)
Width (In.)
3.8 in
Features
Large measuring range, Various sensors available, Battery operation, Error and voids detection, Internal measurement data memory, Print via Bluetooth
For Use With
To measure the wall thicknesses of all homogeneous materials
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-TG 300-P5EE
Zoro #
G422432462
UPC #
-
Country of Origin
Germany
Dimensions
Width (In.)
3.8 in
Sensor Diameter
10 mm / 0.39"
Sensor Minimum Diameter Of Pipes
20 x 3 mm / 0.787 x 0.118"
Length (In.)
7.3 in
Details
Accuracy
±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) ; H refers to the material thickness of the workpiece
Working Modes
Pulse-echo mode (fault and void detection), Echo-echo mode (hide layer thicknesses, e.g., paint)
Features
Large measuring range, Various sensors available, Battery operation, Error and voids detection, Internal measurement data memory, Print via Bluetooth
For Use With
To measure the wall thicknesses of all homogeneous materials
Sensor Measuring Range (P-E)
2 to 600 mm / 0.078 to 23.62"
View Mode
Normal Mode; Scan Mode; Difference Mode
Sensor Description
normal measurement and E-E test
Sensor Measuring Range (E-E)
2.5 to 100 mm / 0.098 to 3.937"
Calibration
sound velocity calibration, zero calibration, two-point calibration
Measuring Range (E-E, Echo-Echo)
2.50 to 100 mm / 0.098 to 2.36"
Resolution (mm)
0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Application
To measure the wall thicknesses of all homogeneous materials
Measuring Range (P-E, Pulse-Echo)
0.65 to 600 mm / 0.025 to 23.62" (steel)
Sensor Model
PCE-TG-P5EE
Sensor Frequency
5 MHz
Measurable Materials
Metals; Plastics; Ceramics; Epoxy Resin; Glass and All Homogeneous Materials
Includes
1 x Sensor PCE-TG-P5EE, 1 x 100 ml coupling gel, 1 x Transport case, 4 x AA batteries, 1 x User manual
Description
This NDT test instrument with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90 deg sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.
