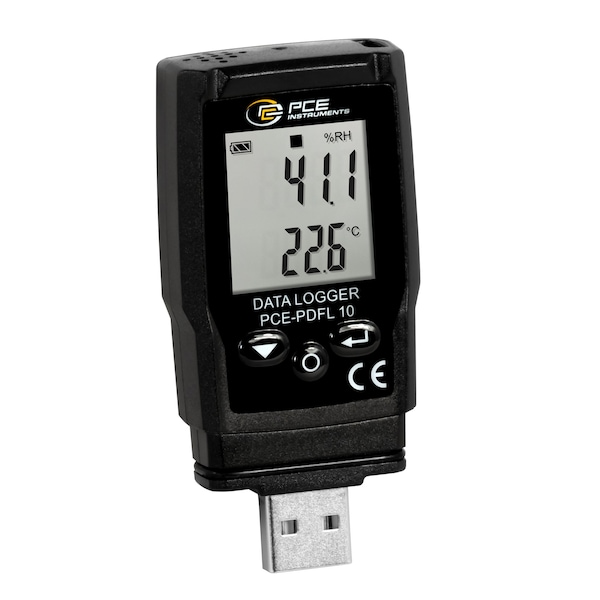

Temperature datalogger, -22 to 140 deg F with 13k-point memory and USB export

  • Mfr # PCE-PDFL 10

  • Zoro # G722432308


product price:  $146.99
/ea
Free Shipping & Returns

Key Features

Power Supply Battery
3V battery (CR2450)
Power Supply Usb-A
5V DC, 0.1 A
Data Export
.pdf, .csv
Width (In.)
1.4 in
Resolution Relative Humidity
0.1% r. F.
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PCE-PDFL 10
Zoro #
G722432308
UPC #
-
Country of Origin
China

Dimensions

Width (In.)
1.4 in
Length
3.0 in

Details

Power Supply Battery
3V battery (CR2450)
Power Supply Usb-A
5V DC, 0.1 A
Data Export
.pdf, .csv
Resolution Relative Humidity
0.1% r. F.
Memory
13340 measuring points
Accuracy Temperature
±1.0°C / 1.8°F at -30 to 0°C / -22 to 32°F, ±0.5°C / 0.9°F at 0 to 60°C / 32 to 140°F
Storage Rate
1 minute ... 24 hours
Absolute Air Pressure Resolution
1 hpa, 0.1 mm Hg, 0.01 in Hg
Interface
USB-A
Relative Humidity Range
0 to 100% r. F.
Absolute Air Pressure Measuring Range
700 to 1100 hpa, 525.0 to 825.0 mm Hg, 20.67 to 32.48 in Hg
Absolute Air Pressure Accuracy
±3 hpa,±2.5 mmHg,±0.1 inHg
Accuracy Relative Humidity
±5.0% r. F. at 0 to 20% r. F. and 80 to 100% r. F., ±3.5% r. F. at 20 to 40% r. F. and 60 to 80% r. F., ±3.0% r. F. at 40 to 60% r. F.
Resolution Temperature
0.1°C / 0.18°F
Includes
1 x 3V button battery (CR2450), 1 x Software CD, 1 x Instruction manual

Description

The barometric pressure meter has a measuring range of -3 ... 6 deg C / -22 ... 14 deg F and can be used in cold environments. In addition to temperature and humidity measurement, the barometric pressure meter can also measure the absolute air pressure in the ambient atmosphere in a measuring range between 7 ... 11 hpa. Due to the different sensors, the barometric pressure meter already covers a wide range of measuring tasks. Typical applications of the barometric pressure meter are, for example, the monitoring of refrigeration facilities, greenhouses or also in the monitoring of an office workplace. The measured values are stored on the internal memory of the barometric pressure meter . The barometric pressure meter has a memory capacity of 1334 measuring points. Once a measurement run has been completed, the stored measurement data can be read out from the barometric pressure meter independently of the operating system. This is possible because the barometric pressure meter is recognised as a mass data memory. When storing the measurement data, the measurement points are saved in a .pdf and in a .csv file. With the corresponding software for the barometric pressure meter , the measured values can be displayed graphically. In addition, settings for the barometric pressure meter can be made via the software. For example, the storage interval can be set between 1 minute and 24 hours, visual alarm limits and start/stop pulses can be set for the barometric pressure meter . Optionally, the barometric pressure meter can be equipped with an ISO calibration certificate.
