Vibration datalogger kit, 0.5-199.9 m/s sq. and 0.5-199.9 mm/s with 4-channel SD log
Mfr # PCE-VM 5000-KIT
Zoro # G022432619
product price:Â $4,439.99
/ea
Free Shipping & Returns
Key Features
Frequency Range
10 Hz to 1 kHz
Expansion
Range: 0.078 in
Acceleration
Range: 0.5 to 199.9-m/s²
Includes

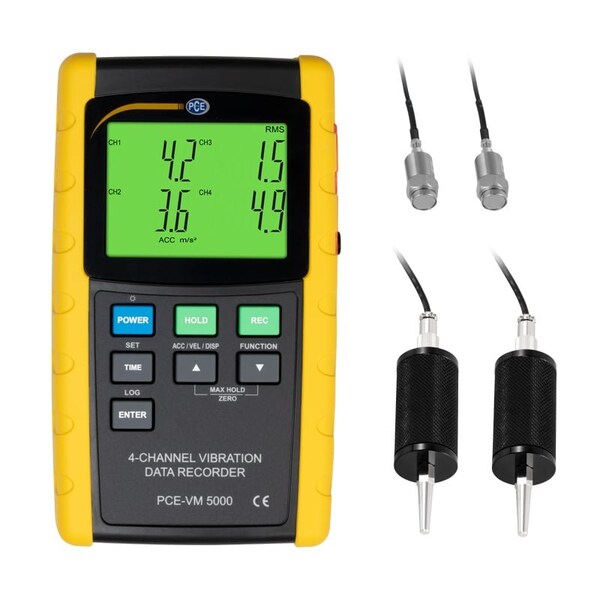

1 x Vibration Analyzer PCE-VM 5000-KIT, 2 x Sensor VB-83 with cable and magnetic base (1.2m / 3.9 ft), 2 x Vibration sensor VB-84, 8 x 1.5V AA batteries, 1 x Transportation case, 1 x Instruction manual
Peak Hold
Acceleration, Speed: Measures / updates the max. value, Expansion: Measures / updates the p-p value, Acceleration, Speed: Measures / updates the max. value
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-VM 5000-KIT
- Zoro #
- G022432619
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Width (In.)
- 3.0 in
- Length
- 8.0 in
Details
- Frequency Range
- 10 Hz to 1 kHz
- Expansion
- Range: 0.078 in
- Acceleration
- Range: 0.5 to 199.9-m/s²
- Includes
- 1 x Vibration Analyzer PCE-VM 5000-KIT, 2 x Sensor VB-83 with cable and magnetic base (1.2m / 3.9 ft), 2 x Vibration sensor VB-84, 8 x 1.5V AA batteries, 1 x Transportation case, 1 x Instruction manual
- Peak Hold
- Acceleration, Speed: Measures / updates the max. value, Expansion: Measures / updates the p-p value, Acceleration, Speed: Measures / updates the max. value
- Unit Of Measurement
- Acceleration: m/s², g, ft/s², Speed: mm/s, cm/s, ines/s, Expansion: mm, ines
- For Use With
- Performs vibration Measurements on up to 4 places at the same time. The vibration velocity, acceleration, and displacement in a frequency range of 10 Hz to 1 kHz can be measured.
- Calibration Point
- 50-m/s² (160 Hz), 50-mm/s (160 Hz), 0.141 mm (160 Hz)
- Accuracy
- Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
- Measurement Types
- Speed, acceleration, expansion
- Speed Range
- Range: 0.02 to 7.89-in/s
Description
The camera microscope is a microscope with a large sample support surface of 380 x 225 mm / 15 x 8.9 in. This makes it possible to freely position even larger samples on the camera microscope. On the 7-inch LC display, the camera microscope, the samples can be analyzed directly. In addition, the LC display can be disassembled from the camera microscope and positioned by the supplied stand, freely on the workstation. Due to the large height adjustment range of 290 mm / 11.4 in of the camera microscope even very high objects can be increased. With the 48 SMD LED illumination on the camera microscope, the samples are optimally illuminated. Thus, the camera microscope is optimal due to its robust and large design suitable for use in, for example, schools, universities or in workshops.
