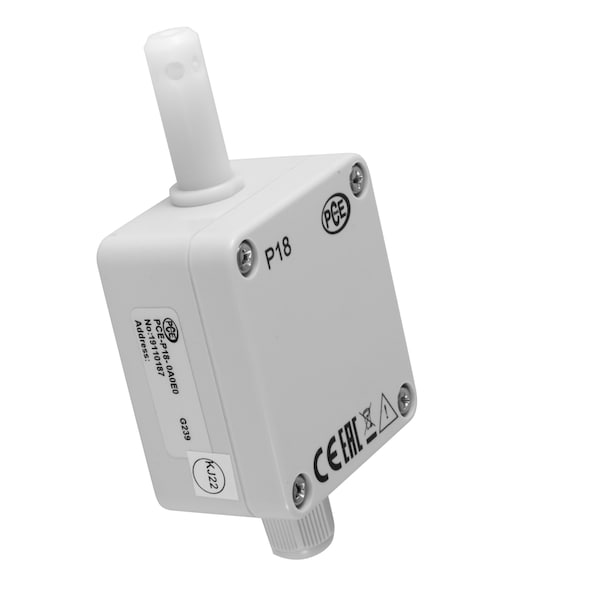

Temperature/humidity probe, measures 0-100% RH and -4 to 140 deg F with RS-485 Modbus output
Mfr # PCE-P18-0A0E0
Zoro # G822432383
product price: $209.99
/ea
Free Shipping & Returns
Key Features
Humidity Measuring Range
0 to 100% RH
Features
Humidity and temperature sensor, Easy wall mounting, RS485 interface, For continuous monitoring, Various filters available small dimensions
Performance
< 1.5 W
Application
To monitor humidity and temperature
Length
1.4 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-P18-0A0E0
Zoro #
G822432383
UPC #
-
Country of Origin
Poland
Dimensions
Length
1.4 in
Width
2.3 in
Details
Humidity Measuring Range
0 to 100% RH
Features
Humidity and temperature sensor, Easy wall mounting, RS485 interface, For continuous monitoring, Various filters available small dimensions
Performance
< 1.5 W
Application
To monitor humidity and temperature
Baud Rate
4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps
Humidity Accuracy
±2% (in the range 10% to 90% RH)
±3% (remaining range)
Transfer Mode
8N1, 8N2, 8E1, 8O1
Temperature Influence
± 25% / 10°C (18°F)
Max. Humidity
≤95% RH
For Use With
To monitor humidity and temperature
Supply Voltage
19V to 30V DC
Preheating Time
15 minutes
Temperature Measuring Range
20 to 60°C / 68 to 140°F
Max. Connectable Resistance at The Output
≤ 500 Ω
Includes
1 x Manual
Hysteresis
± 1% RH
Data Interface
RS-485 Modbus RTU
Ambient Temperature
-30 to 85°C / -22 to 185°F
Temperature Accuracy
±0.7% of measuring range
Description
Measures temperature and humidity / output as standard signal / compact Modbus RTU interface / wall mounting The humidity sensor is used in HVAC technology to monitor humidity and temperature. The measured values are output by the humidity sensor via the RS485 interface. In this compact humidity sensor, air humidity and temperature are precisely determined using a semiconductor component. For commissioning, the humidity sensor is supplied via a DC voltage. The measured variables are output via a two-wire line. All connections are made via screw contacts in the waterproof IP 65 housing. This function is particularly useful if several measuring points are to be linked to one another during your home surveillance.
