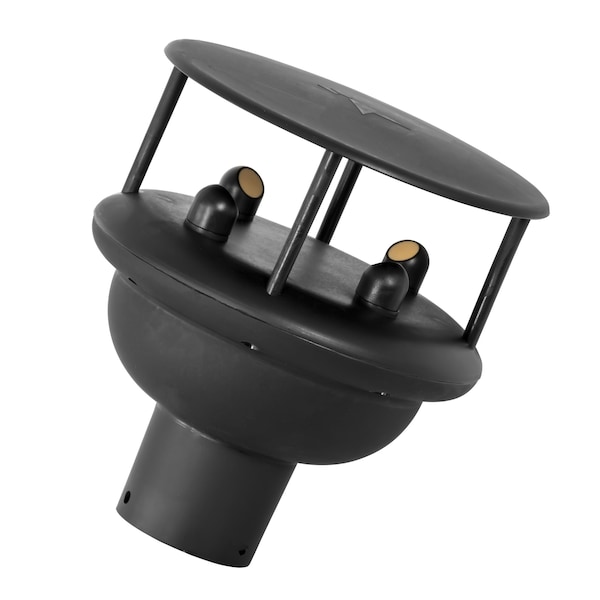

Ultrasonic anemometer, 0-160 km/h with 1 deg. wind direction and IP65
Mfr # PCE-WS US2
Zoro # G422432646
product price:Â
$
1,134.99
/ea
Free Shipping & Returns
Key Features
Protection Class
IP65
Length
5.63 in
Interface
RS485
Sensor
Ultrasound
Wind Direction Range
0 to 359°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-WS US2
- Zoro #
- G422432646
- UPC #
- -
- Country of Origin
- Spain
Dimensions
- Length
- 5.63 in
- Width
- 6.38 in
Details
- Protection Class
- IP65
- Interface
- RS485
- Sensor
- Ultrasound
- Wind Direction Range
- 0 to 359°
- Measuring Functions
- Flow velocity
- For Use With
- Measures the wind flow using ultrasonic transducers to determine the exact wind speed and direction
- Connection Type
- M12 4-pole
- Housing
- PA (polyamide)
- Air Velocity Accuracy
- 0.5-km/h, 3°
- Speed Range
- to 15-km/h
- Includes
- 1 x Air Flow Meter PCE-WS V , 1 x instruction manual
Description
The Wind Speed Meter can be used in various fields of application. In use, the wind speed meter with cable and data logger 230 V starts measuring even the slightest wind movements. On the one hand, the wind speed meter can be used to monitor the current wind speed. On the other hand, it is also possible to use the wind speed meter with cable and data logger 230 V to measure average values for the last two or five minutes. If the wind speed values are higher than the pre-set values, a pre-alarm is activated before the alarm is triggered. Both alarms are emitted visually and audibly on the Wind Speed Meter. If the pre-alarm is activated, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. If the regular alarm needs to be activated, the red LED will flash and the device will beep continuously. In general, the wind speed meter is used wherever wind monitoring is required. This is often the case in factories, mines, wind turbines and the like. If required, a relay can also be connected to the Wind Speed Meter. In addition to the low wind speeds, the wind speed meter is characterised by its high reliability and high accuracy.
