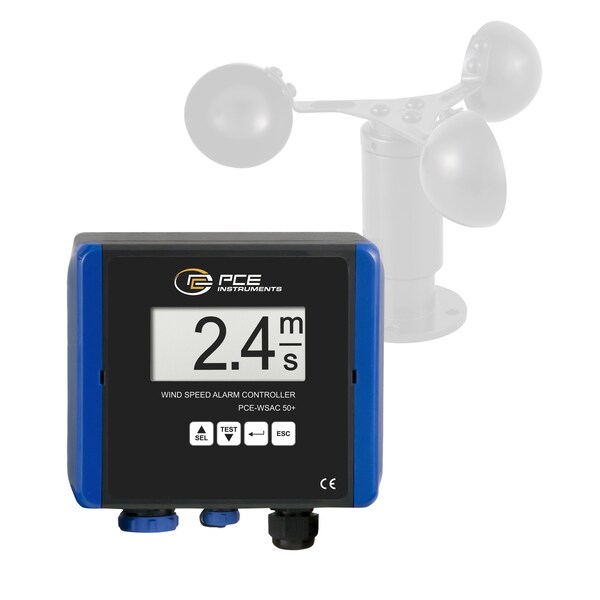

Wind speed alarm controller, 0-50 m/s with 4-20 mA/Pulse and datalogger (24V DC)
Mfr # PCE-WSAC 50+ 24
Zoro # G122432595
product price: $1,454.99
/ea
Free Shipping & Returns
Key Features
Display Size
3 in
Storage Interval From
10 s
Input
4 to 20 mA, Pulse
Outputs
4 to 20 mA, max. 250 V AC, 8 A, 15 V DC
Resolution
128 x 64 pixels
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-WSAC 50+ 24
- Zoro #
- G122432595
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Display Size
- 3 in
- Length
- 1.97 in
- Width
- 6.30 in
Details
- Storage Interval From
- 10 s
- Input
- 4 to 20 mA, Pulse
- Outputs
- 4 to 20 mA, max. 250 V AC, 8 A, 15 V DC
- Resolution
- 128 x 64 pixels
- Air Velocity Accuracy
- ±0.3 m/s v.Mb.
- Power Source
- Display: 24 V DC
- Storage Capacity
- 30000 Data records
- Units
- m/s, km/h, mph
- Storage Medium
- Micro SD card, Internal memory
- For Use With
- Be used to monitor and alarm the current wind speed
- Speed Range
- 0-m/s to 50-m/s
- Display Type
- LCD
- Storage Interval To
- 1 h
- Interface
- RS485
- Includes
- 1 x Wind Speed Meter PCE-WSAC 50+ 230, 1 x 8 GB microSD card, 1 x user manual, 1 x sensor plug, Note: Wind sensor not included! This must be ordered separately!
Description
The wind warning device can be used in different fields of application. In use, the wind measuring device carries out measurements from the smallest wind movements. The wind warning device can be used on the one hand to monitor the current wind speed. On the other hand, it is also possible to use the wind measuring device to measure the average value of the last two or five minutes. If the wind speed values are higher than the preset values, a pre-alarm is first activated before the alarm is output. Both alarms are given visually and acoustically on the wind warning device. If the pre-alarm takes effect, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. When the normal alarm needs to be activated, the red LED will flash and the beep will be played continuously by the device. In general, the wind warning device is used wherever wind monitoring has to be carried out. This is often the case in factories, mines, wind turbines and similar. If necessary, a relay can also be connected to the anemometer. In addition to the low wind speeds, the wind measuring device is characterized by its high reliability and high accuracy. ***Sensors sold separately***
