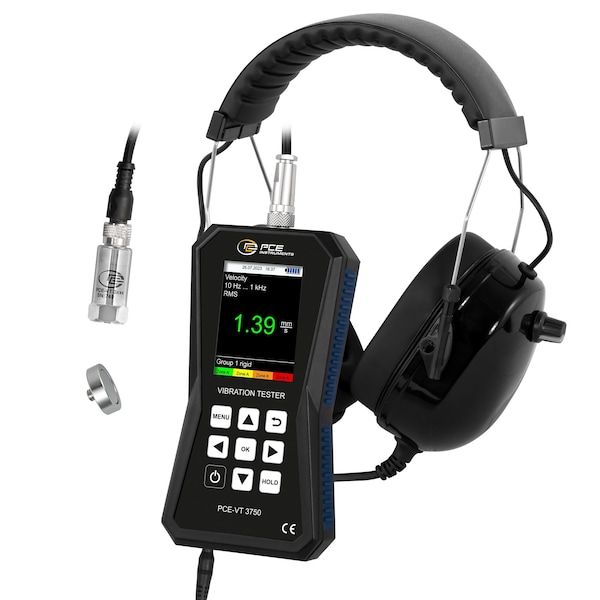

Vibration meter, 0.0-399.9 m/s sq. with 10-10 kHz FFT and 0-399.9 mm/s velocity
Mfr # PCE-VT 3750
Zoro # G222432600
product price:Â $1,546.99
/ea
Free Shipping & Returns
Key Features
Width
1.8 in
FFT velocity
10 Hzto 1 kHz
Displacement Range
0.000 to 3.9 mm / 0.000 - 0.154 in
Includes
1 x Accelerometer PCE-VT 3750, 1 x Sensor with spiral cable PCE-VT 3xxx SENSOR, 1 x Magnet adapter PCE-VT VMH, 3 x 1.5 V AA batteries, 1 x Quickstart guide, 1 x Case, 1 x headset
Frequency Range (Hz)
10 Hz to 10 kHz, 1 kHz to 10 kHz, 10 Hz to 1 kHz, 10 Hz to 200 Hz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PCE-VT 3750
Zoro #
G222432600
UPC #
-
Country of Origin
Germany
Dimensions
Width
1.8 in
Length
0.67 in
Details
FFT velocity
10 Hzto 1 kHz
Displacement Range
0.000 to 3.9 mm / 0.000 - 0.154 in
Includes
1 x Accelerometer PCE-VT 3750, 1 x Sensor with spiral cable PCE-VT 3xxx SENSOR, 1 x Magnet adapter PCE-VT VMH, 3 x 1.5 V AA batteries, 1 x Quickstart guide, 1 x Case, 1 x headset
Frequency Range (Hz)
10 Hz to 10 kHz, 1 kHz to 10 kHz, 10 Hz to 1 kHz, 10 Hz to 200 Hz
FFT acceleration
10 Hz to 8 kHz
Velocity
0.00 to 399.9-mm/s / 0.00 - 15.74-in/s
For Use With
Ideal for maintenance workers to quickly check vibrating parts, machines and systems
Resolution
0.1-m/s² / 3.94-in/s², 0.1-mm/s / 0.0039-in/s, 1 µm / 39.4 µin
Accuracy @ 160 Hz
±2 %
Acceleration Range
0.0 to 399.9-m/s² / 0.0 - 15744-in/s²
Description
The accelerometer is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display. The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.
