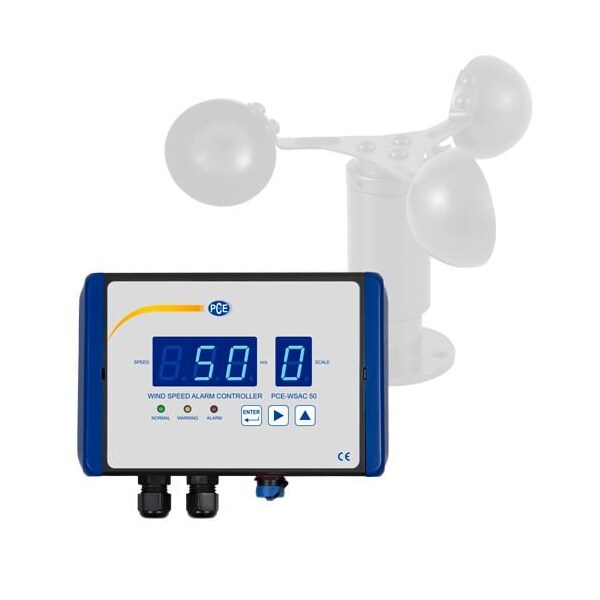

Wind speed alarm controller, 0-50 m/s with 0-10V, RS-485 and dual relays (24V DC)
Mfr # PCE-WSAC 50-321
Zoro # G222432624
product price:Â $854.99
/ea
Free Shipping & Returns
Key Features
Signal Input
0 to 10 V
Interface
RS485
Width
3.5 in
Voltage Rating
12V DC, 24V DC
Measuring Range
0 to 50-m/s
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-WSAC 50-321
Zoro #
G222432624
UPC #
-
Country of Origin
Germany
Dimensions
Width
3.5 in
Length
7.7 in
Details
Signal Input
0 to 10 V
Interface
RS485
Voltage Rating
12V DC, 24V DC
Measuring Range
0 to 50-m/s
Measuring Accuracy
± 3% of measuring range
Power Source
24 V DC
For Use With
Be used to monitor and alarm the current wind speed
Alarm Relay
2-NO/NC relays with max. load of 220V AC / 10 A
Includes
1 x Air Flow Meter PCE-WSAC 50-321, 1 x User manual, 1 x Sensor connector, 1 x ISO Calibration certificate, , , Note: Wind sensor not included. This must be ordered separately.
Description
Air Flow Meter is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The Wind Speed Meter PCE-WSAC 50W 230 is equipped with alarm relay for a pre-alarm or main alarm. Due to the high measuring range of up to 50 m / s of the anemometer, stormy gusts can also be monitored. The radio range of the anemometer is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the anemometer PCE-WSAC 50W 230 in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.
