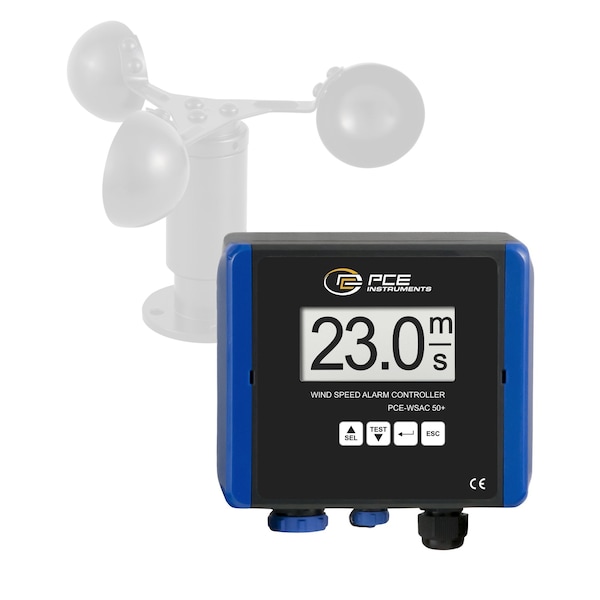

Wind speed alarm controller, 0-50 m/s with 4-20 mA/Pulse and datalogger (AC 230V)
Mfr # PCE-WSAC 50+ 230
Zoro # G422432554
product price:Â $1,454.99
/ea
Free Shipping & Returns
Key Features
Storage Interval To
1 h
Includes
1 x Wind Speed Meter PCE-WSAC 50+ 230, 1 x 8 GB microSD card, 1 x user manual, 1 x sensor plug, Note: Wind sensor not included! This must be ordered separately!
Interface
RS485
Units
m/s, km/h, mph
For Use With
Be used to monitor and alarm the current wind speed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-WSAC 50+ 230
- Zoro #
- G422432554
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Display Size
- 3 in
- Width
- 6.30 in
- Length
- 1.97 in
Details
- Storage Interval To
- 1 h
- Includes
- 1 x Wind Speed Meter PCE-WSAC 50+ 230, 1 x 8 GB microSD card, 1 x user manual, 1 x sensor plug, Note: Wind sensor not included! This must be ordered separately!
- Interface
- RS485
- Units
- m/s, km/h, mph
- For Use With
- Be used to monitor and alarm the current wind speed
- Input
- 4 to 20 mA, Pulse
- Storage Medium
- Micro SD card, Internal memory
- Air Velocity Accuracy
- ±0.3 m/s v.Mb.
- Resolution
- 128 x 64 pixels
- Speed Range
- 0-m/s to 50-m/s
- Display Type
- LCD
- Power Source
- AC 110 to 230 V | Hz 50-/ 60
- Storage Interval From
- 10 s
- Storage Capacity
- 30000 Data records
- Outputs
- 4 to 20 mA, max. 250 V AC, 8 A, 15 V DC
Description
The Wind Measurer can be used in various fields of application. In use, the wind speed meter with cable and data logger 24 V starts measuring even the slightest wind movements. On the one hand, the wind speed meter can be used to monitor the current wind speed. On the other hand, it is also possible to use the wind speed meter with cable and data logger 24 V to measure average values for the last two or five minutes. If the wind speed values are higher than the pre-set values, a pre-alarm is activated before the alarm is triggered. Both alarms are emitted visually and audibly on the Wind Measurer. If the pre-alarm is activated, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. If the regular alarm needs to be activated, the red LED will flash and the device will beep continuously. In general, the wind speed meter is used wherever wind monitoring is required. This is often the case in factories, mines, wind turbines and the like. If required, a relay can also be connected to the Wind Measurer. In addition to the low wind speeds, the wind speed meter is characterised by its high reliability and high accuracy.
