Thermo-Anemometer
Mfr # PCE-HWA 30
Zoro # G616552921
product price:Â $417.99
/ea
Free Shipping & Returns
Key Features
Air Velocity Accuracy
±3% ±0.1 m/s of measured value
Includes
1 x Micro USB cable, 1 x Transport case, 1 x Instruction manual
Data Logging
960 measured values
Resolution
0.01-m/s
Power Source
3.7V, 1000 mAh battery, 5V DC, 1 A Micro USB interface
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-HWA 30
- Zoro #
- G616552921
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 7.6 in
- Dia. (In.)
- Ø0.8 - 1.2 mm / 0.031 x 0.047
- Probe Length (In.)
- 10.63 to 38.98 (270 to 990 mm)
- Width
- 2.7 in
Details
- Air Velocity Accuracy
- ±3% ±0.1 m/s of measured value
- Includes
- 1 x Micro USB cable, 1 x Transport case, 1 x Instruction manual
- Data Logging
- 960 measured values
- Resolution
- 0.01-m/s
- Power Source
- 3.7V, 1000 mAh battery, 5V DC, 1 A Micro USB interface
- Velocity Ranges
- 0.3 - 30.0-m/s
- Temp. Accuracy (F)
- ±1.8°F
- Interface
- Micro USB
- Temp. Resolution (F)
- 0.18°F
- Application
- To measure the flow velocity according to the hot wire principle
- Volume Flow Measuring Range
- 0 - 999900-m³/min
- For Use With
- To measure the flow velocity according to the hot wire principle
- Features
- Hot wire anemometer with data storage, Software for reading out the measured values, Swiveling telescopic arm, Measuring range 0.3 - 30.0-m/s / 0.98 - 98.4-ft/s, Data memory for 960 measured values, Beaufort scale
- Temp. Range (F)
- 32 - 113 °F
- Volume Flow Adjustable Area
- 0.001 - 999 m²
- Volume Flow Resolution
- 0.001 - 100-m³/min
Description

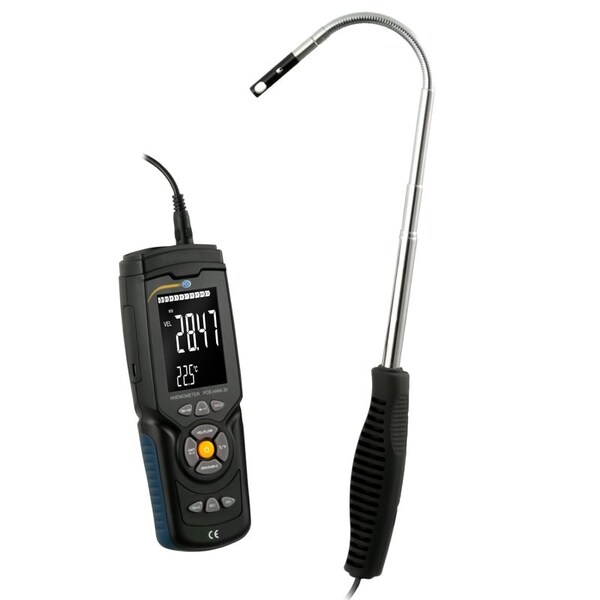

The thermometer measures the flow velocity according to the hot wire principle. This guarantees a particularly compact design. The measuring range of the hot wire anemometer is between 0.3 ... 30.0 m/s / 0.98 ... 98.4 ft/s. In addition to the flow velocity, the hot wire anemometer can measure the volume flow and the ambient temperature. For each measurement, a Beaufort scale is displayed next to the measured value. The current wind strength can be read from this scale.With the integrated data memory, up to 960 measured values can be recorded with the thermometer. The data can be read directly on the hot wire anemometer. Also, the measured values from the hot wire anemometer can be transferred to a PC via the micro USB interface. Suitable software for the hot wire anemometer is available in the PCE Instruments download portal for further processing of the data.For optimal alignment, the telescopic arm of the thermometer can be extended up to 270 990 mm / 10.63 38.98 / 29.1. In addition, the head of the hot wire anemometer is semi-rigid and can therefore be aligned in different ways. The battery of the hot wire anemometer with a capacity of 1000 mAh enables mobile use. To recharge the battery, the hot wire anemometer must be connected to a 5 V DC micro-USB power supply.HIGHLIGHTS- Hot wire anemometer with data storage- Software for reading out the measured values- Swiveling telescopic arm- Measuring range 0.3 ... 30.0 m/s / 0.98 ... 98.4 ft/s- Data memory for 960 measured values- Beaufort scale
