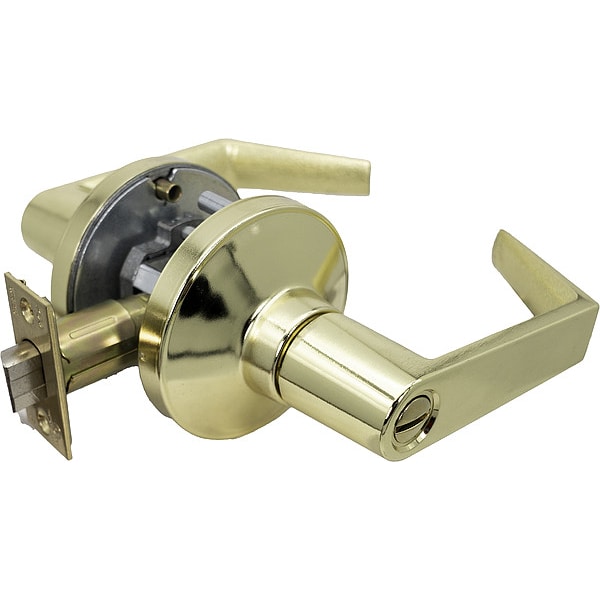

Pdq Door Lever Lockset, PHL Angled Style GP 176 PHL 605 234 ASA - main

Door Lever Lockset, PHL Angled Style

  • Mfr # GP 176 PHL 605 234 ASA

  • Zoro # G7414849

product price: $84.59
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Series
GP
Required Door Thickness
1-3/8 in to 1-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GP 176 PHL 605 234 ASA
Zoro #
G7414849
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Series
GP
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in
Strike Type
ASA
Mortise / Cylindrical
Cylindrical
Style
PHL Angled
For Use With
Metal or Wood Doors
Standards
ANSI/BHMA 156.2, Grade 2, ICC/ANSI 117.1
Number of Pins
0
Key Type
Not Keyed
Lockset Performance Strength
Medium Duty
Keyway Type
Schlage C
Mortise/Cylindrical
Cylindrical
Handle Material
Zinc
Cylinder Core Type
Large Format Interchangeable Core Cylinder
Lockset Handle Type
Lever
ADA Compliant
Yes
Lockset Finish
Bright Brass
Lockset Fire Rating
3 hr
Features
1,500 lbf-in Lever Torque Resistance, 13 ga Steel Anti-Rotation Plate
Ligature Resistant
No
Lockset Grade
2
Number of Keys
2
Visual Indicator Message
No Message
Trim Plate Shape
Round
Locking/Unlocking Access - Inside
Push Button
UL Fire Rating
UL10C
Lockset Function ANSI Code
F76
ANSI Grade
2
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Lockset Style
Philadelphia Lever
Knob/Handle Material
Brass
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Application
Educational, Government, Institutional, Hospitals, Churches, Industrial, Multiple Family Residential, Office
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Bright Brass, Clear Coated
Locking/Unlocking Access - Outside
Coin Turn

Description

Door Lever Lockset,PHL Angled Style
