Shop PECO

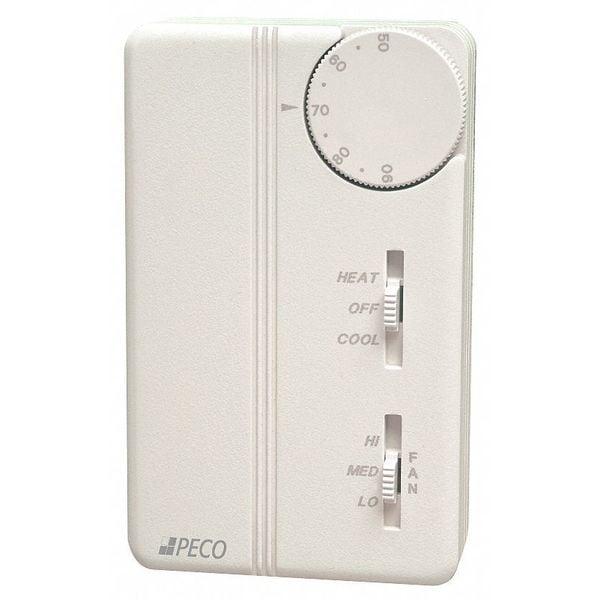

Fan Coil Thermostat, Electronic, Analog

  • Mfr # TA167-007
  • Zoro # G1498707
product price:
$
98.99
/ea

Key Features

Fan Coil Thermostat Type
Analog, Electronic
Thermostat Switch Type
Triac
Switch Action
Open/Close on Rise
Number of Switches
6
Thermostat Control Range
50 Degrees to 90 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TA167-007
Zoro #
G1498707
UPC #
879978000134
Country of Origin
China

Dimensions

Height (In.)
2 13/16 in
Width (In.)
4 1/2 in
Depth (In.)
1 in
Overall Depth
1 in
Overall Height
2 13/16 in
Overall Width
4 1/2 in
Digit Size
Standard

Details

Item
Fan Coil Thermostat
Fan Coil Thermostat Type
Analog, Electronic
Thermostat Switch Type
Triac
Switch Action
Open/Close on Rise
Number of Switches
6
Thermostat Control Range
50 Degrees to 90 Degrees F
Differential (Deg. F)
1 Degree F
System Switching
Heat-Off-Cool
Voltage
24V
Locked Rotor Amps @ 240V
17.4
Rated For Pilot Duty
125VA
Color
White
Thermostat Number of Speeds
3
Temp. Settings per Day
Manual Adjust
Special Information
Low Voltage Thermostat is Electrically Isolated From The Line Voltage Fan Switching
Uses
Fan Coil, 2 Pipe or 4 Pipe
Locked Rotor Amps @ 120V
34.8
Agency Compliance
UL, cUL, CE
Thermostat Item
Fan Coil Thermostat
Enclosure Type
Rigid Vinyl
Display
Analog
Application
Heat and Cool
Full Load Amps @ 120VAC
5.8 A
Thermostat Number of Pipes
2 or 4
Thermostat Heating/Cooling
Heating/Cooling
Sensor Type
Thermistor
Full Load Amps @ 240VAC
2.9 A
Input Voltage
24V AC
Fan Switching
Hi-Med-Low
Includes
Mounting Hardware
Mounting Position
Vertical
Number of Stages
2
Switch Type
0 to 10VDC
Temperature Control Range
50 Degrees to 90 Degrees F
Dual Transformer Compatible
No
Housing Type
Rigid Vinyl
Housing Color
White
Minimum Control Temperature
50 Degrees F
Changeover Type
Manual
Mounting Direction
Vertical
Programming Capability
Not Programmable
Key Pad Lockout
No
Temperature settings per day
Manual Adjust
Temperature Scale
Fahrenheit
System/Fan Settings
Cool-Heat-Off, Hi-Med-Low
Maximum Operating Temperature
90 Degrees F
Standards
CE, cUL, UL
Backlit Screen
No
System Settings
Cool-Heat-Off
Display Type
Analog
Stages
1H/1C
Housing Material
Plastic
Frequency
50 Hz, 60 Hz
Pilot Duty Rating
125VA
Temperature Readout
No
Terminal Designations
2, 3, 4, 5, TB1-1, TB2-1, TB3-1
Number of Pipes
2 or 4
Thermostat Type
Fan Coil Thermostat
Differential Type
Fixed
Temperature Differential
1 Degrees F
Dehumidification Control
No
Humidification Control
No
Maximum Control Temperature
90 Degrees F
Contact Rating
24V AC
Mounting Direction/Shape
Vertical
Control Type
Slide Switch
Compatible System Type
Fan Coil Unit
Operating Temperature Range
50 Degrees to 90 Degrees F
Fan Settings
Hi-Med-Low
Number of Zones
8
Includes Positive Off
Yes
Application/Stages
Heat and Cool, 1H/1C
Shape
Rectangle
Type
Electronic, Analog

Description

Fan Coil Thermostat, Analog, Electronic, Thermostat Switch Type Triac, Switch Action Open/Close on Rise, Number of Switches 6, Thermostat Control Range 50 Degrees to 90 Degrees F, Differential (Deg. F) 1, Thermostat Heating/Cooling Heating/Cooling, Thermostat Number of Pipes 2 or 4, Thermostat Number of Speeds 3, Fan Switching Hi-Med-Low, System Switching Heat-Off-Cool, Sensor Type Thermistor, 2 13/16 in, 4 1/2 in, 1 in
