  11. Cstr, Kingpinles Swivel, Urethane, 7700 lb.

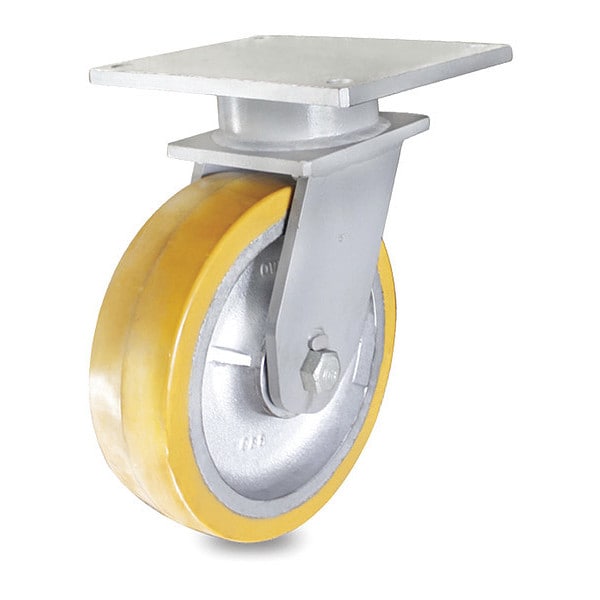

Pegasus Cstr, Kingpinles Swivel, Urethane, 7700 lb. P31S-UY160WT-P - main

Cstr, Kingpinles Swivel, Urethane, 7700 lb.

  • Mfr # P31S-UY160WT-P

  • Zoro # G0252872

product price: $2,386.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Kingpinless Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P31S-UY160WT-P
Zoro #
G0252872
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
16 in
Wheel Width
5 in
Mounting Plate Size
300 mm x 400 mm
Mounting Plate Thickness
0.709 in
Mounting Bolt Dia.
1 in
Swivel Radius
12 in
Overall Height
20-3/4 in

Details

Item
Kingpinless Swivel Caster
Caster Sub-Type
Kingpinless Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Tapered Roller
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
240 mm x 340 mm
Inside Bolt Hole Spacing
240 mm x 340 mm
Frame Finish
Zinc Plated
Extended Lead
No
Replacement Wheel
Mfr. No. P-UY-160x050/100T
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Series
P31 Series
Includes Thread Guards
No
ESD Conductive
No
Load Capacity
7700 lb
Tread
Standard
Tread Color
Yellow
Load Rating Range
Super-Heavy Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Kingpinless Single Ball
Wheel Core Material
Cast Iron
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Kingpinles Swivel,Urethane,7700 lb.
