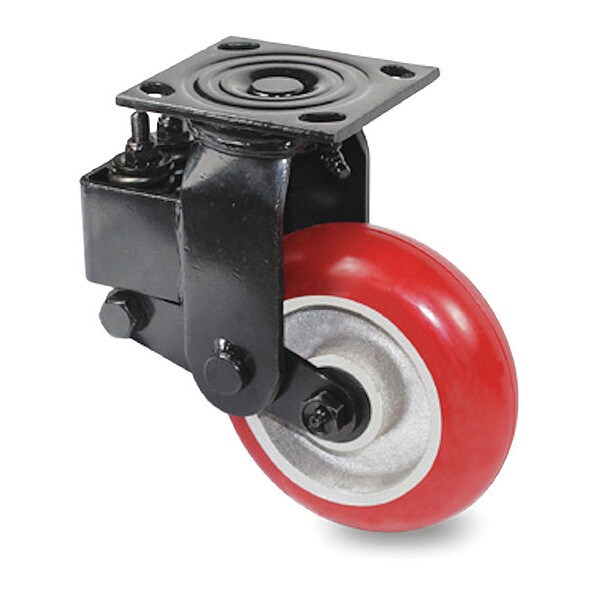

Pegasus Cstr, Shck Absorb, Swvl Plt, Urethn, 330 lb. P22S-URY060K-14 - main

Cstr, Shck Absorb, Swvl Plt, Urethn, 330 lb.

  • Mfr # P22S-URY060K-14

  • Zoro # G0251299

product price:  $91.65
/ea
Free Shipping & Returns

Key Features

Core Color
Red
Overall Height
8-1/2 in
Tread
Crowned
Number of Wheels
1
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P22S-URY060K-14
Zoro #
G0251299
UPC #
-
Country of Origin
China

Dimensions

Overall Height
8-1/2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Wheel Width
2 in
Swivel Radius
4-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Item
Swivel Caster
Core Color
Red
Tread
Crowned
Number of Wheels
1
Caster Sub-Type
Swivel
System of Measurement
Inch
Tread Color
Red
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. P-URY-060x020/050K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Non-Marking
Yes
Frame Finish
Black Powder Coated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Type
No Brake Included
Extended Lead
No
Caster Frame Material
Stainless Steel
Load Rating Range
Medium Duty
Load Capacity
330 lb
Wheel Core Material
Cast Iron
Swivel Raceway Type
Double Ball
Max. Spring Deflection
55/64 in
Includes Thread Guards
No
Tread Shape
Crowned
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P22 Series
ESD Conductive
No
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
92 Shore A
Maximum Compression Force
800 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Shck Absorb,Swvl Plt,Urethn,330 lb.
