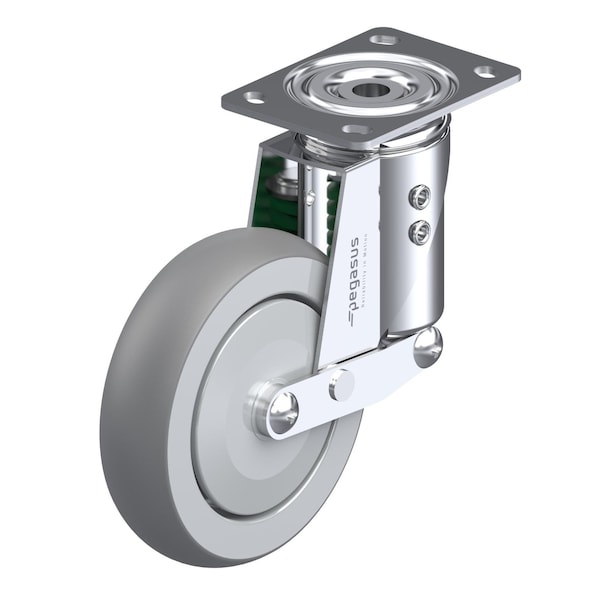

Pegasus Cstr, Shck Absrb, Swvl Plt, Gray TPR, 165 lb P16S-RP030K-P - main

Cstr, Shck Absrb, Swvl Plt, Gray TPR, 165 lb

  • Mfr # P16S-RP030K-P

  • Zoro # G0249223

product price:  $34.19
/ea

Key Features

Frame Finish
Chrome Plated
Includes
Shock Absorbing, Thread Guards
System of Measurement
Inch
Overall Height
4-7/16 in
Caster Brake Type
No Brake Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P16S-RP030K-P
Zoro #
G0249223
UPC #
-
Country of Origin
China

Dimensions

Overall Height
4-7/16 in
Wheel Width
1-1/4 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4-9/16 in
Mounting Plate Size
2-3/4 in x 3-3/4 in
Mounting Plate Thickness
0.118 in

Details

Item
Swivel Caster
Frame Finish
Chrome Plated
Includes
Shock Absorbing, Thread Guards
System of Measurement
Inch
Caster Brake Type
No Brake Included
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
Yes
Number of Wheels
1
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Tread Color
Gray
Tread
Standard
Caster Mounting Type
Plate
Core Color
Gray
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. P-RP-030x013/031K
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Series
P16 Series
Max. Spring Deflection
13/32 in
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Light Duty
ESD Conductive
No
Number of Mounting Holes
4
Tread Shape
Standard
Includes Thread Guards
Yes
Load Capacity
165 lb
Wheel Core Material
Polypropylene
Wheel Hardness Rating
85-95 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Thermoplastic Rubber
Operating Temperature Range
-4 Degrees To 140 Degrees F
Maximum Compression Force
66 lb

Description

Cstr,Shck Absrb,Swvl Plt,Gray TPR,165 lb
