  6. Cstr, Stnls Kgpnls Svl Plt, Urethn, 2550 lb

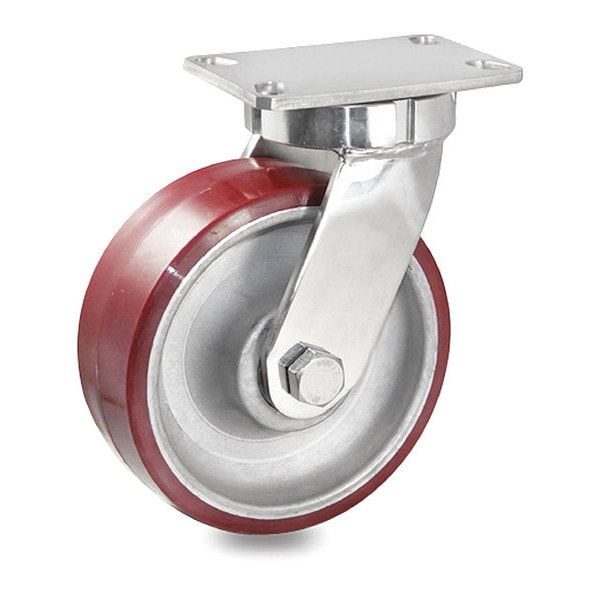

Pegasus Cstr, Stnls Kgpnls Svl Plt, Urethn, 2550 lb P27SX-URA080K-16 - main

Cstr, Stnls Kgpnls Svl Plt, Urethn, 2550 lb

  • Mfr # P27SX-URA080K-16

  • Zoro # G0252303

product price:  $383.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Overall Height
10-1/8 in
Non-Marking
Yes
Caster Sub-Type
Kingpinless Swivel
Frame Finish
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P27SX-URA080K-16
Zoro #
G0252303
UPC #
-
Country of Origin
China

Dimensions

Overall Height
10-1/8 in
Wheel Dia.
8 in
Swivel Radius
6-1/16 in
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Item
Kingpinless Swivel Caster
Extended Lead
No
Non-Marking
Yes
Caster Sub-Type
Kingpinless Swivel
Frame Finish
Stainless Steel
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Core Color
Silver
Caster Brake Included
No
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. P-URA-080x030/075K
Number of Wheels
1
Caster Frame Material
Stainless Steel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
No Brake Included
System of Measurement
Inch
Load Rating Range
Heavy Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Caster Mounting Type
Plate
ESD Conductive
No
Wheel Core Material
Aluminum
Load Capacity
2500 lb
Swivel Raceway Type
Kingpinless Single Ball
Series
P27X Series
Includes Thread Guards
No
Accessories
Optional: P-DL27X-16 (Directional Lock)
Tread Color
Red
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Polyurethane
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Stnls Kgpnls Svl Plt,Urethn,2550 lb
