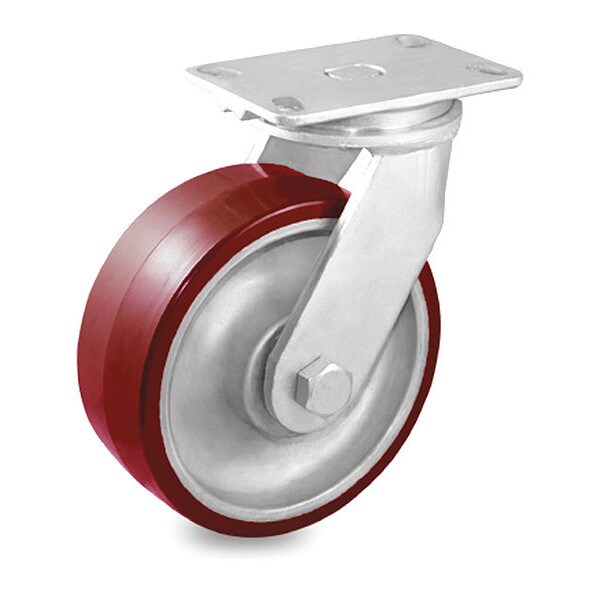

Pegasus Cstr, Swivel Plate, Red Urethane, 2550 lb. P29S-URA080K-18 - main

Cstr, Swivel Plate, Red Urethane, 2550 lb.

  • Mfr # P29S-URA080K-18

  • Zoro # G0252382

product price:  $239.99
/ea
Free Shipping & Returns

Key Features

Tread
Standard
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Width
3 in
Caster Brake Type
No Brake Included
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P29S-URA080K-18
Zoro #
G0252382
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Overall Height
10-1/2 in
Swivel Radius
7 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
5-1/4 in x 7-1/4 in

Details

Item
Swivel Caster
Tread
Standard
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
No Brake Included
System of Measurement
Inch
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Replacement Wheel
Mfr. No. P-URA-080x030/075K
Core Color
Silver
Caster Brake Included
No
Number of Wheels
1
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Sub-Type
Swivel
Non-Marking
Yes
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Tread Color
Red
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
ESD Conductive
No
Load Rating Range
Heavy Duty
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Load Capacity
2500 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P29 Series
Accessories
Optional: P-DL29-18 (Directional Lock)
Wheel Core Material
Aluminum
Wheel/Tread Material
Polyurethane
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Swivel Plate,Red Urethane,2550 lb.
