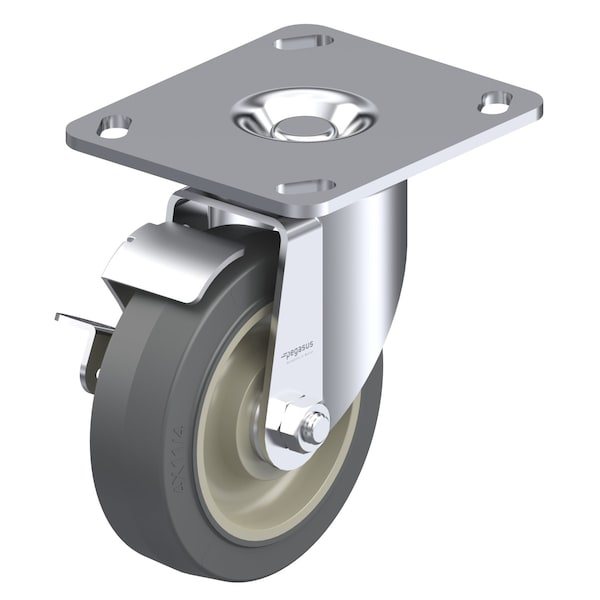

Pegasus Cstr, Swivl Plt, Gray Surlastc, 150 lb., Brk P12S-PRP030D-P3-WB - main

Cstr, Swivl Plt, Gray Surlastc, 150 lb., Brk

  • Mfr # P12S-PRP030D-P3-WB

  • Zoro # G0241541

product price:  $14.79
/ea

Key Features

Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Caster Brake Type
Strap Type Brake
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP030D-P3-WB
Zoro #
G0241541
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1-1/4 in
Overall Height
4-1/4 in
Swivel Radius
2-13/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
3-3/4 in x 4-3/8 in

Details

Item
Swivel Caster With Brake
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Caster Brake Type
Strap Type Brake
Caster Sub-Type
Swivel
Application
Retail, Industrial, Commercial
Number of Wheels
1
Caster Brake Included
Yes
Standards
RoHS, ICWM, NSF
Tread Color
Gray
System of Measurement
Inch
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Tread
Standard
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-PRP-030x013/038D
Includes
Strap Type Brake
Caster Frame Material
Steel
Extended Lead
No
Number of Mounting Holes
4
Includes Thread Guards
No
Series
P12 Series
Tread Shape
Standard
Wheel Core Material
Polypropylene
Load Rating Range
Light Duty
Swivel Raceway Type
Double Ball
ESD Conductive
No
Load Capacity
200 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material
Thermoplastic Rubber
Wheel Hardness Rating
85-95 Shore A
Wheel Bearing Type
Delrin
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Cstr,Swivl Plt,Gray Surlastc,150 lb.,Brk
