  6. Cstr, Twn Whl Plym Plt Svl, Urhn, 220 lb, Tl

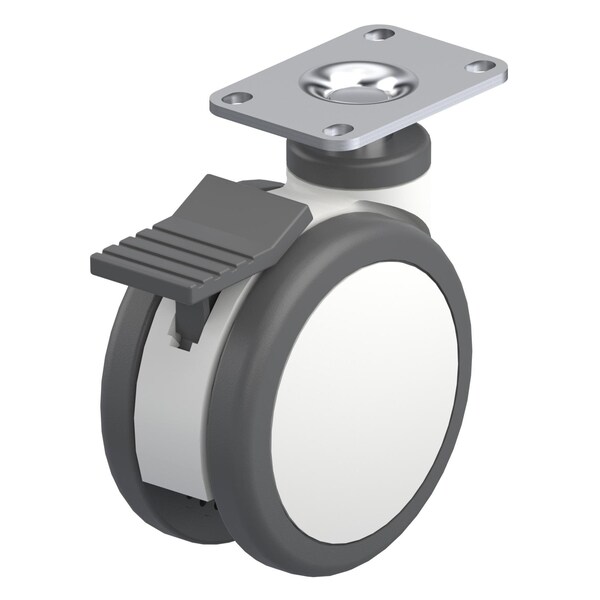

Pegasus Cstr, Twn Whl Plym Plt Svl, Urhn, 220 lb, Tl P18S-UP100K-P-TB - main

Cstr, Twn Whl Plym Plt Svl, Urhn, 220 lb, Tl

  • Mfr # P18S-UP100K-P-TB

  • Zoro # G0249582

product price:  $26.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P18S-UP100K-P-TB
Zoro #
G0249582
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
63 mm x 96 mm
Mounting Plate Thickness
0.010 in
Mounting Bolt Dia.
M7
Wheel Width
70 mm
Overall Height
130 mm
Wheel Dia.
100 mm
Swivel Radius
79 mm

Details

Item
Swivel Caster With Total-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
50-60 Shore D
Number of Mounting Holes
4
Caster Frame Material
Nylon
Non-Marking
Yes
Number of Wheels
2
Standards
RoHS, ICWM
Frame Finish
Natural Light Gray
Caster Brake Included
Yes
Core Color
White
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes
Total-Lock
Outside Bolt Hole Spacing
78 mm x 45 mm
Inside Bolt Hole Spacing
72 mm x 45 mm
Tread Color
Black
Extended Lead
No
Load Rating Range
Light Duty
Series
P18 Series
ESD Conductive
No
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
220 lb
Wheel Core Material
Polypropylene
Tread Shape
Standard
Swivel Raceway Type
Precision Ball
Wheel/Tread Material
Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Cstr,Twn Whl Plym Plt Svl,Urhn,220 lb,Tl
